SPIT

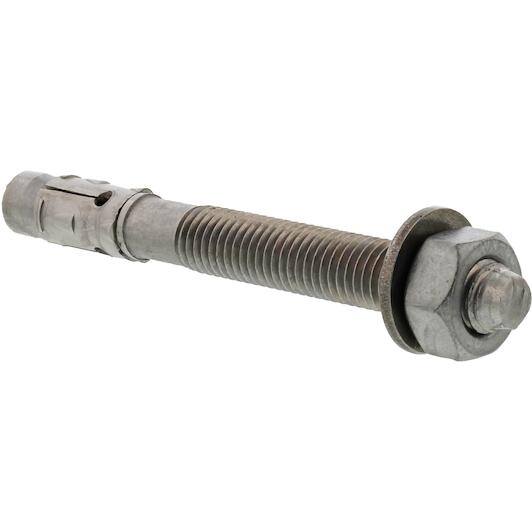

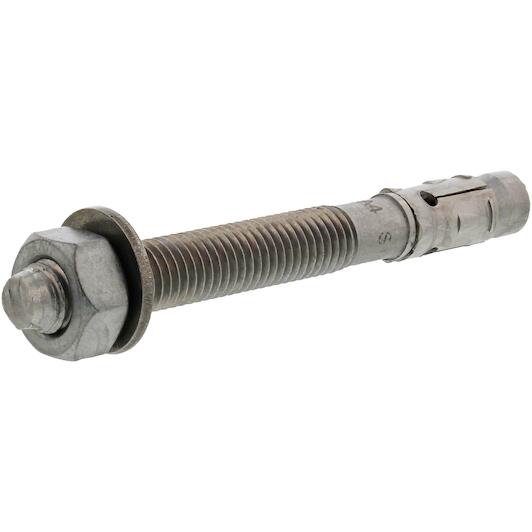

SPIT 058625 FIX Z XTREM A4 segment anchor M12x120 zinc-plated

7.20 tax incl.
€5.95 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/05/2026
each

The minimum purchase order quantity for the product is 25.

  • Delivery by DHL

Product description

  • Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
  • ETA approved quality stainless steel anchor for safety applications
  • Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
  • High allowable loads thanks to special geometry and segment thickness
  • Large range that can be used in all seismic C1 and C2 areas

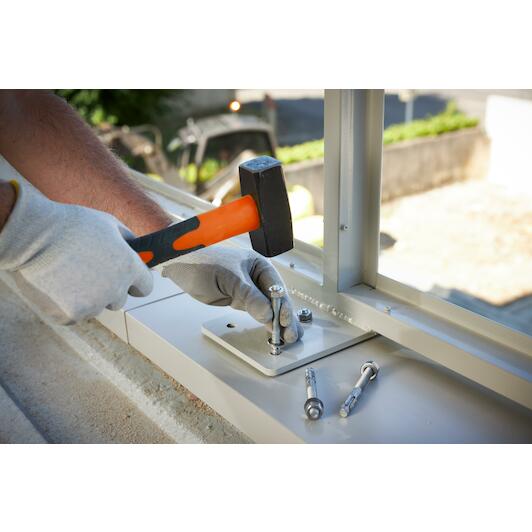

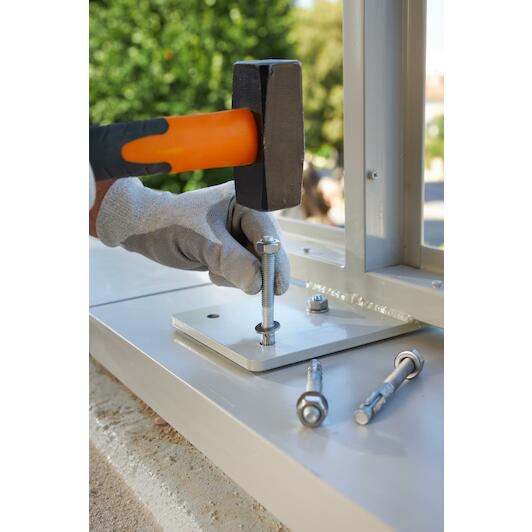

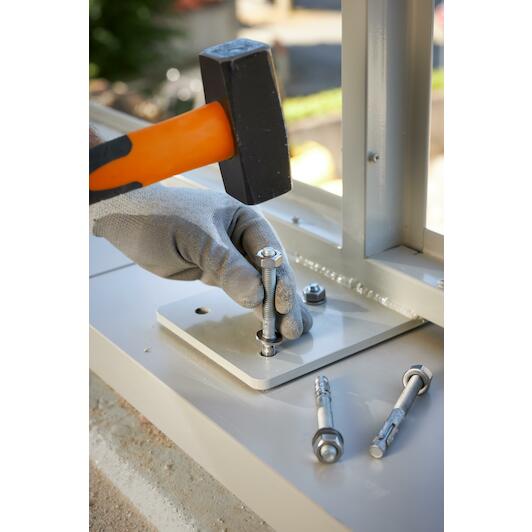

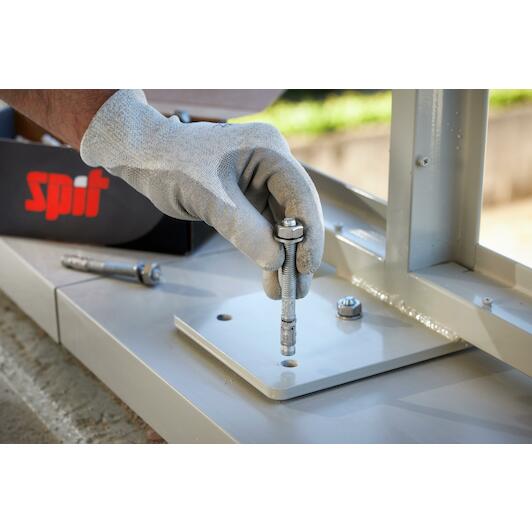

  • Geometry ensures easy placement and fast installation due to minimum number of turns
  • Maximum flexibility thanks to the fully continuous screw act

Applications

  • Steel structures
  • Stairs
  • Pull and pressure braces
  • Purlin shoe
  • Stadium seating
  • HVAC
  • Wooden structures
  • Brackets
  • Metal brackets
Key features according to our expert
  • Thread dimension: M12
  • Overall length: 120 mm
  • Material (bolt): Stainless steel A4
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510586259
  • Supplier number: SPIT 058625
Thread dimension
M12
Overall length
120 mm
Material (bolt)
Stainless steel A4
Treatment
Stainless steel A4
Min. edge distance (mm)
60 mm
Product material
INOX A4
Head type
Loose nut head
Min. anchor distance
60 mm
Anchor diameter
12.0 mm
Maximum trapping
45 mm
Tightening torque
75 N-m
Min. thickness of base material
100 mm
Minimum drilling depth
70 mm
Minimum clamping thickness
25 mm
Minimum placement depth
60.0 mm
Drill diameter
12.0 mm
Base material
Cracked concrete, Non-cracked concrete
Maximum installation depth
70 mm
Throughput diameter
14 mm
Anchor length
120 mm
Wire diameter
M12
Key size
19.0 mm
Anchor screw material
Stainless steel A4
