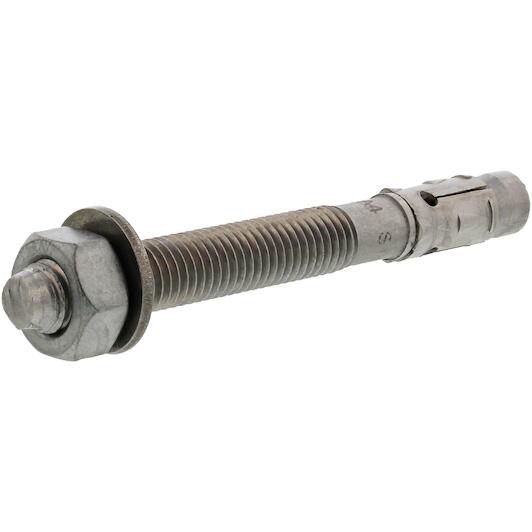

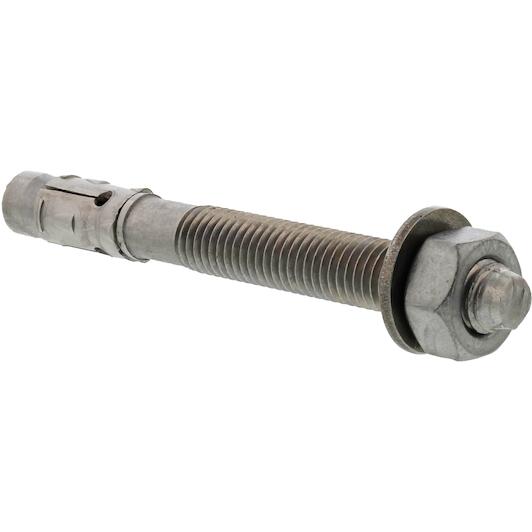

Product description
- Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
- ETA approved quality stainless steel anchor for safety applications
- Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
- High allowable loads thanks to special geometry and segment thickness
- Large range that can be used in all seismic C1 and C2 areas

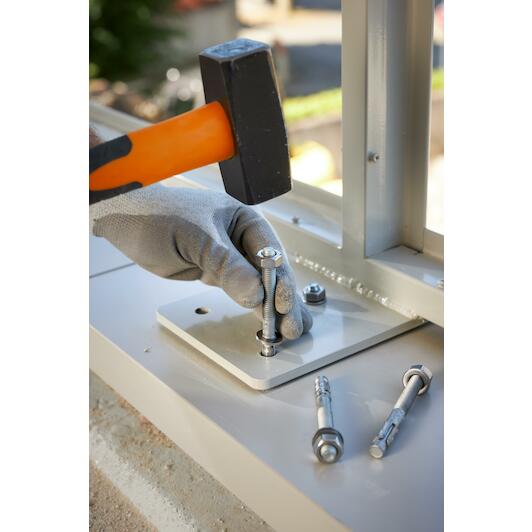

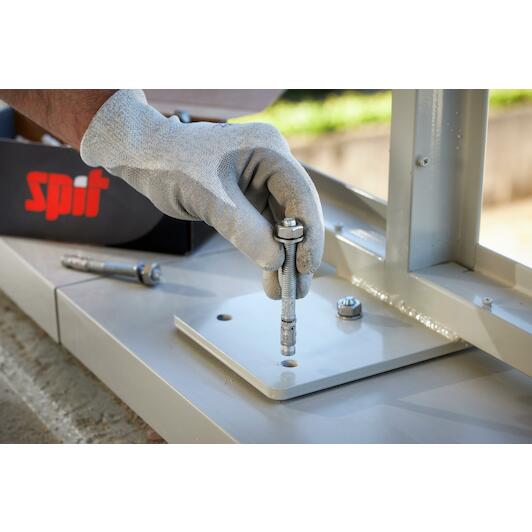

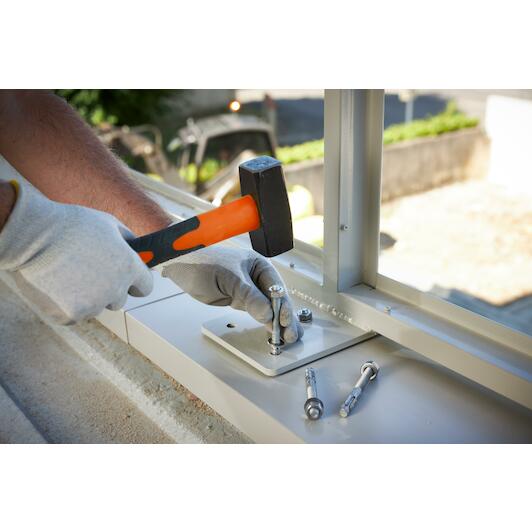

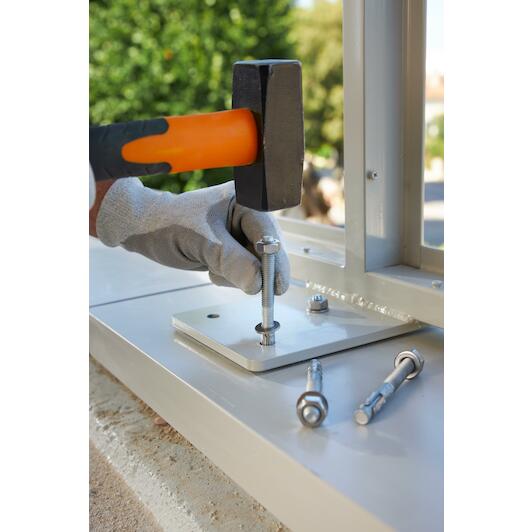

- Geometry ensures easy placement and fast installation due to minimum number of turns
- Maximum flexibility thanks to the fully continuous screw act
Applications
- Steel structures
- Stairs
- Pull and pressure braces
- Purlin shoe
- Stadium seating
- HVAC
- Wooden structures
- Brackets
- Metal brackets
Key features according to our expert
-
Thread dimension: M12
-
Overall length: 110 mm
-
Material (bolt): Stainless steel A4
Specifications / All features
-
Brand:
SPIT
-
03194086
-
EAN:
3439510586242
-
Supplier number:
SPIT 058624
- Thread dimension
- M12
- Overall length
- 110 mm
- Material (bolt)
- Stainless steel A4
- Treatment
- Stainless steel A4
- Min. edge distance (mm)
- 60 mm
- Product material
- INOX A4
- Head type
- Loose nut head
- Min. anchor distance
- 60 mm
- Anchor diameter
- 12.0 mm
- Maximum trapping
- 35 mm
- Tightening torque
- 75 N-m
- Min. thickness of base material
- 100 mm
- Minimum drilling depth
- 70 mm
- Minimum clamping thickness
- 15 mm
- Minimum placement depth
- 60.0 mm
- Drill diameter
- 12.0 mm
- Base material
- Cracked concrete, Non-cracked concrete
- Maximum installation depth
- 70 mm
- Throughput diameter
- 14 mm
- Anchor length
- 110 mm
- Wire diameter
- M12
- Key size
- 19.0 mm
- Anchor screw material
- Stainless steel A4
