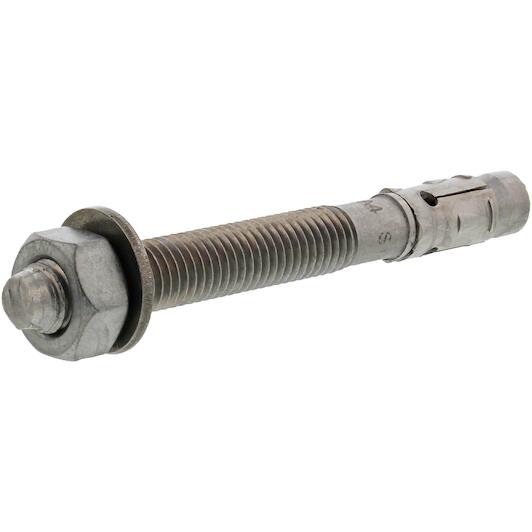

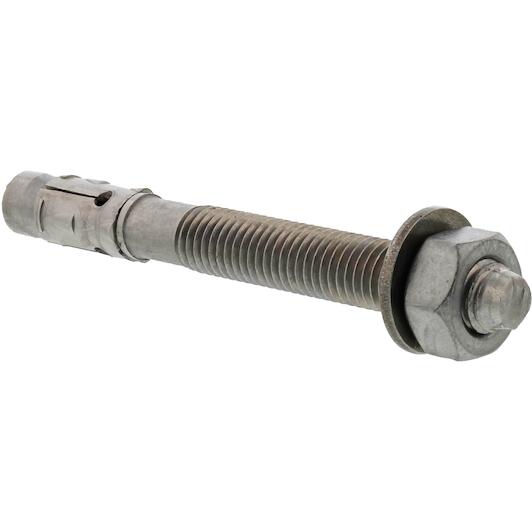

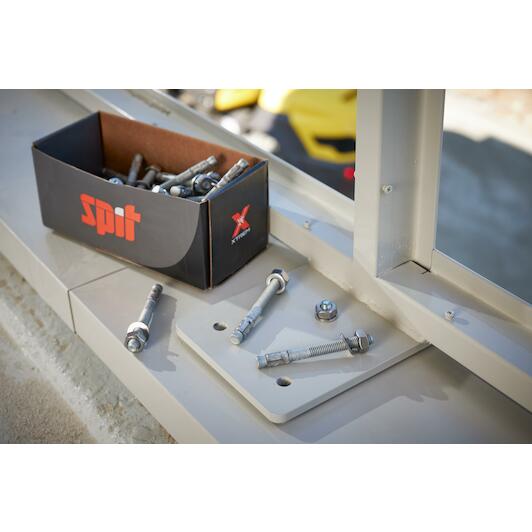

SPIT 058622 FIX Z XTREM A4 segment anchor M10x130 zinc-plated

Name: SPIT 058622 FIX Z XTREM A4 segment anchor M10x130 zinc-plated
Brand: SPIT
SKU: 03196176
Price: 5.2 EUR
Availability: InStock

Supplier number: SPIT 058622 | EAN 3439510586228

5.20 tax incl.

€4.30 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

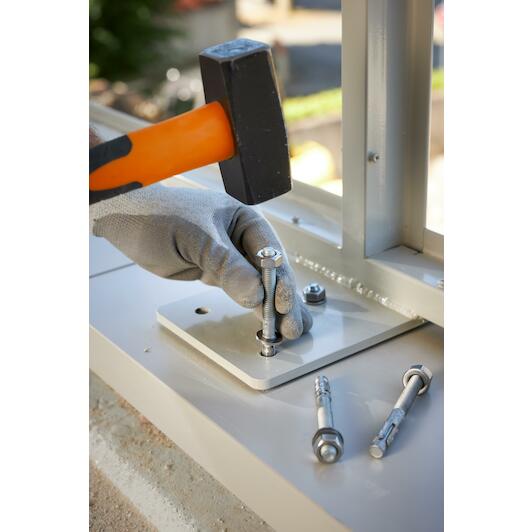

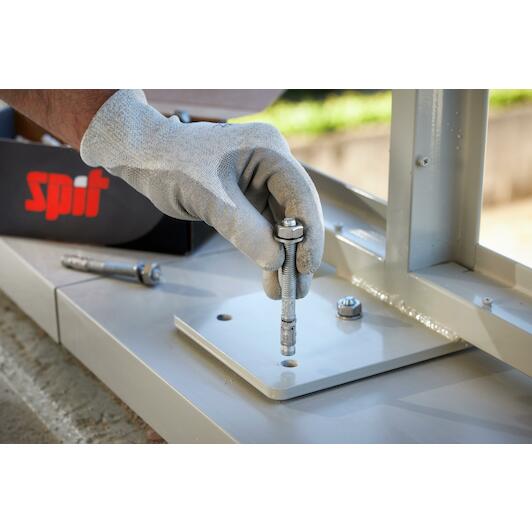

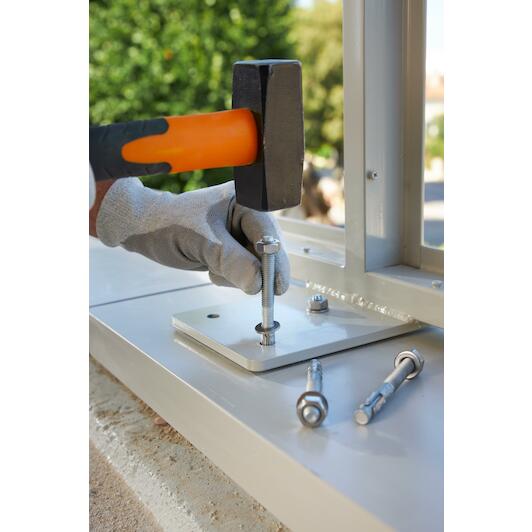

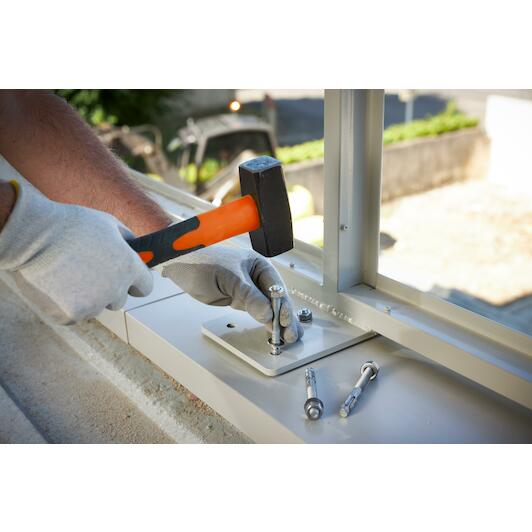

Spit through bolt for heavy concrete anchoring

Practical benefits

Superior outdoor corrosion resistance: High-grade A4 stainless steel ensures you achieve lasting durability in harsh outdoor and wet environments.
High capacity in concrete: The heavy-duty expansion clip delivers high load capacity in both cracked and non-cracked concrete substrates.
Fast and easy setting: An optimized design allows you to set the M10 anchor quickly with minimal turns of the nut.

In a nutshell

The right choise for

With the Spit Fix z Xtrem A4 M10X130 through bolt, you secure heavy loads reliably in both cracked and non-cracked concrete. Made from high-grade A4 stainless steel, this anchor delivers outstanding corrosion resistance in outdoor and wet environments, making it ideal for installing balustrades, facade substructures, and structural steel posts. Its heavy-duty expansion clip ensures high load capacity, backed by an eta approval for seismic performance categories C1 and C2. The optimized design enables fast and straightforward through-fixing, allowing you to set the M10 anchor securely with minimal turns of the nut.

Product information FAQ

€5.20

In stock - tax incl.

Key features according to our expert

Thread designation: M10
Overall length: 130 mm
Material (bolt): Stainless steel A4

Product description

Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
ETA approved quality stainless steel anchor for safety applications
Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
High allowable loads thanks to special geometry and segment thickness
Large range that can be used in all seismic C1 and C2 areas
Geometry ensures easy placement and fast installation due to minimum number of turns
Maximum flexibility thanks to the fully continuous screw act

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC
Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Thread designation: M10
Overall length: 130 mm
Material (bolt): Stainless steel A4
Treatment: Stainless steel A4
Min. edge distance (mm): 60 mm
Product material: INOX A4
Head type: Loose nut head
Min. anchor distance: 55 mm
Anchor diameter: 10.0 mm
Maximum trapping: 70 mm
Tightening torque: 45 N-m
Min. thickness of base material: 120 mm
Minimum drilling depth: 55 mm
Minimum clamping thickness: 50 mm
Minimum placement depth: 48.0 mm
Drill diameter: 10.0 mm
Base material: Cracked concrete, Non-cracked concrete
Maximum installation depth: 60 mm
Throughput diameter: 12 mm
Anchor length: 130 mm
Wire diameter: M10
Key size: 17.0 mm
Anchor screw material: Stainless steel A4

Brand SPIT
03196176
EAN 3439510586228
Supplier number SPIT 058622

Frequently asked questions about this product

Answered by specialists

Which base materials is this through bolt suitable for?: This anchor is approved for use in both cracked and non-cracked concrete.
Can this anchor be used outdoors?: Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor use.
What are the dimensions of this anchor?: It features an M10 thread diameter and has an overall length of 130 mm.
Is this anchor approved for seismic applications?: Yes, it holds an ETA approval for seismic performance categories C1 and C2.
What drill bit diameter is required for installation?: You require a 10 mm drill bit, matching the M10 anchor thread size.
