Which base materials is this wedge anchor suitable for?

It is suitable for cracked and non-cracked concrete and carries an ETA Option 1 approval.

What drill hole diameter is required for installation?

You need a 10 mm drill bit with a minimum drilling depth of 55 mm.

Is this anchor suitable for outdoor applications?

Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor use.

What is the maximum fixture thickness for this anchor?

The maximum fixture thickness for this model is 35 mm.

What is the recommended tightening torque?

The specified tightening torque for this M10 anchor is 45 Nm.

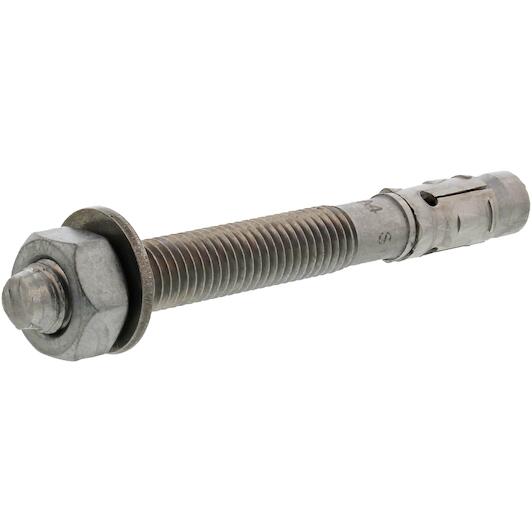

SPIT 058620 FIX Z XTREM A4 segment anchor M10x95 zinc-plated

Name: SPIT 058620 FIX Z XTREM A4 segment anchor M10x95 zinc-plated
Brand: SPIT
SKU: 03194083
Price: 4.14 EUR
Availability: InStock

Supplier number: SPIT 058620 | EAN 3439510586204

4.14 tax incl.

€3.42 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High-strength anchoring in demanding conditions

Practical benefits

Superior resistance to corrosion: High-grade A4 stainless steel ensures you install long-lasting outdoor fastenings fully protected against harsh weather elements.
Approved for cracked concrete: The Spit FIX Z XTREM A4 segmentanker M10X95 verzinkt gives you certified holding power in both cracked and non-cracked concrete.
Fast and effortless installation: The engineered expansion clip allows you to reach maximum clamping tension with a minimal number of turns.

In a nutshell

The right choise for

Secure your heavy-duty structural fixings in cracked and non-cracked concrete with the Spit fix z xtrem A4 wedge anchor M10X95. Engineered with high-grade A4 stainless steel, it provides outstanding corrosion resistance for demanding outdoor installations, railings, and facade sub-structures. The optimized expansion clip delivers immediate mechanical holding power without waiting for chemical resins to cure. Designed for a 10 mm drill diameter with a minimum drilling depth of 55 mm and a tightening torque of 45 Nm, it allows you to fasten components up to 35 mm thick quickly and reliably.

Product information FAQ

€4.14

In stock - tax incl.

Key features according to our expert

Thread designation: M10
Overall length: 95 mm
Material (bolt): Stainless steel A4

Product description

Piercing anchor in stainless steel for cracked and non-cracked concrete and seismic applications
ETA approved quality stainless steel anchor for safety applications
Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
High allowable loads thanks to special geometry and segment thickness
Large range that can be used in all seismic C1 and C2 areas
Geometry ensures easy placement and fast installation due to minimum number of turns
Maximum flexibility thanks to the fully continuous screw act

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC
Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Thread designation: M10
Overall length: 95 mm
Material (bolt): Stainless steel A4
Treatment: Stainless steel A4
Min. edge distance (mm): 60 mm
Product material: INOX A4
Head type: Loose nut head
Min. anchor distance: 55 mm
Anchor diameter: 10.0 mm
Maximum trapping: 35 mm
Tightening torque: 45 N-m
Min. thickness of base material: 120 mm
Minimum drilling depth: 55 mm
Minimum clamping thickness: 15 mm
Minimum placement depth: 48.0 mm
Drill diameter: 10.0 mm
Base material: Cracked concrete, Non-cracked concrete
Maximum installation depth: 60 mm
Throughput diameter: 12 mm
Anchor length: 95 mm
Wire diameter: M10
Key size: 17.0 mm
Anchor screw material: Stainless steel A4

Brand SPIT
03194083
EAN 3439510586204
Supplier number SPIT 058620

Frequently asked questions about this product

Answered by specialists

Which base materials is this wedge anchor suitable for?: It is suitable for cracked and non-cracked concrete and carries an ETA Option 1 approval.
What drill hole diameter is required for installation?: You need a 10 mm drill bit with a minimum drilling depth of 55 mm.
Is this anchor suitable for outdoor applications?: Yes, the A4 stainless steel construction provides high corrosion resistance for outdoor use.
What is the maximum fixture thickness for this anchor?: The maximum fixture thickness for this model is 35 mm.
What is the recommended tightening torque?: The specified tightening torque for this M10 anchor is 45 Nm.
