SPIT

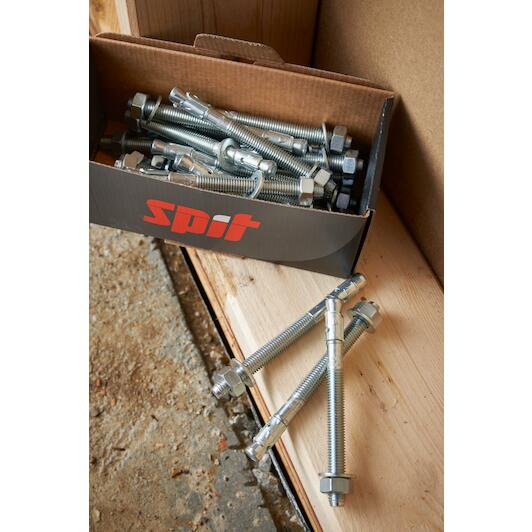

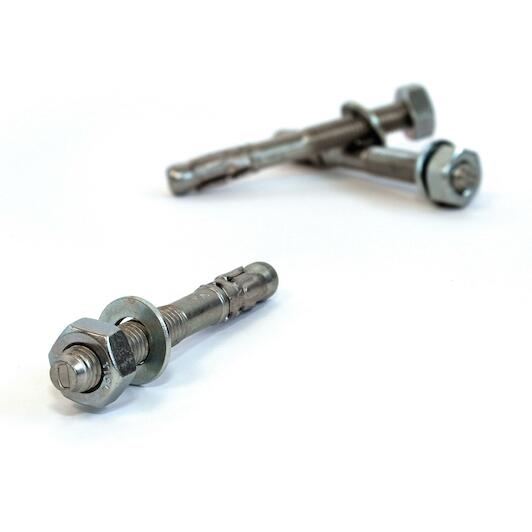

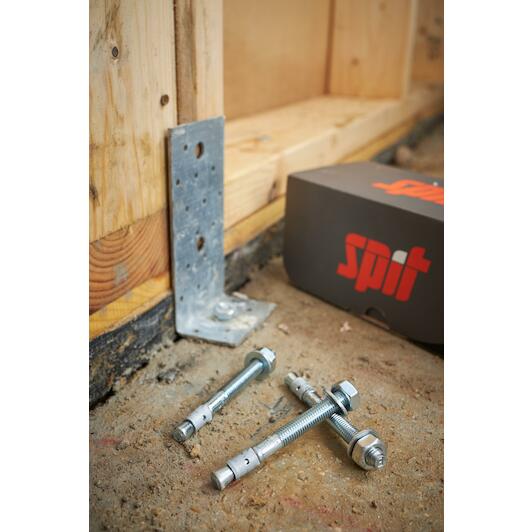

SPIT 057770 FIX Z XTREM segment anchor M10x100/20 zinc-plated (washer and nut pre-mounted)

1.56 tax incl.
€1.29 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

The minimum purchase order quantity for the product is 25.

  • Delivery by DHL

Product description

  • Piercing anchor for cracked and non-cracked concrete and seismic applications
  • ETA-approved quality anchor for safety applications
  • Widely applicable XTREM anchor thanks to CE approval for use in cracked and non-cracked concrete
  • High allowable loads thanks to special geometry and segment thickness
  • Large range that can be used in all seismic C1 and C2 areas
  • Geometry ensures easy placement and fast installation due to minimum number of turns
  • Maximum flexibility thanks to the fully continuous screw act

Applications

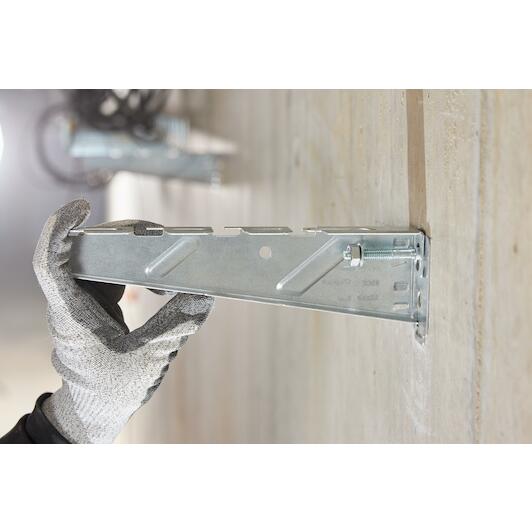

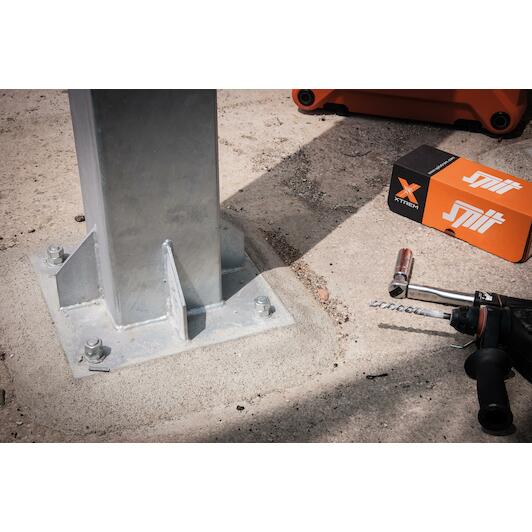

  • Steel structures
  • Safety fences

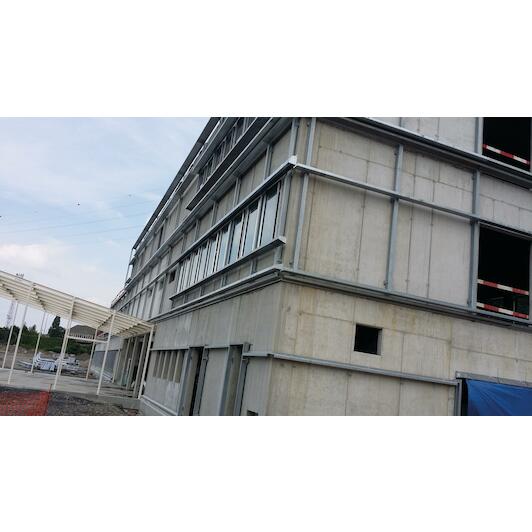

  • Curtain wall
  • Purlin
  • Wooden panel

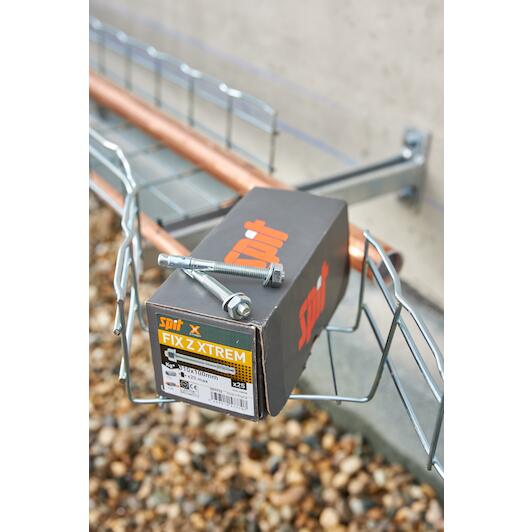

  • HVAC

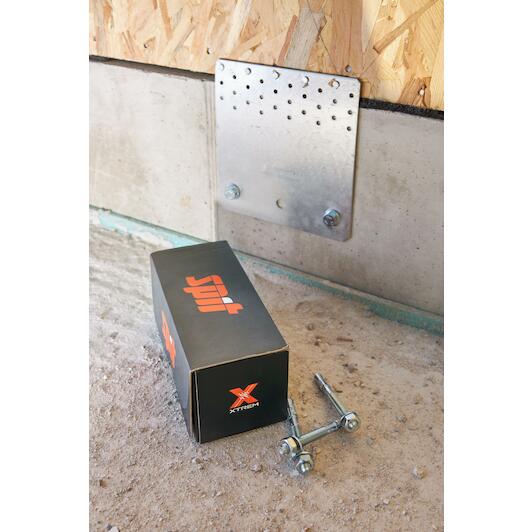

  • Timber structures
Key features according to our expert
  • Drilling diameter: 10 mm
  • Effective length: 20 mm
  • Overall length: 100 mm
  • Material (bolt): Steel
  • Surface treatment (bolt): Zinc plated
  • Thread dimension: M10
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510577707
  • Supplier number: SPIT 057770
Drilling diameter
10 mm
Effective length
20 mm
Overall length
100 mm
Material (bolt)
Steel
Surface treatment (bolt)
Zinc plated
Thread dimension
M10
Anchor diameter
10.0 mm
Min. thickness of base material
120 mm
Tightening torque
45 N-m
Maximum trapping
40 mm
Head type
Loose nut head
Min. anchor distance
55 mm
Base material colour
GREY
Minimum clamping thickness
20 mm
Product material
Carbon steel
Min. edge distance (mm)
60 mm
Treatment
Galvanised
Minimum drilling depth
55 mm
Base material
Cracked concrete, Non-cracked concrete
Drill diameter
10.0 mm
Minimum placement depth
40.0 mm
Maximum installation depth
60 mm
Throughput diameter
12 mm
Anchor length
100 mm
Wire diameter
M10
Key size
17.0 mm
Anchor screw material
Steel
