Which base materials is this wedge anchor suitable for?

This Spit FIX 3 anchor is designed for heavy-duty fixings in non-cracked concrete and solid stone with ETA option 7 approval.

What drill diameter do you need for installation?

You need a drill hole diameter of 20 mm in the base material to install this M20 anchor.

What is the maximum fixture thickness for this anchor?

The fixture thickness is 10 mm, allowing you to secure materials up to a maximum thickness of 10 mm.

Does the anchor come with a nut and washer?

Yes, the wedge anchor is supplied complete with a pre-mounted nut and washer ready for installation.

Is this zinc-plated anchor suitable for outdoor use?

Zinc-plated steel is intended for dry indoor environments. For outdoor or damp conditions, choose stainless steel.

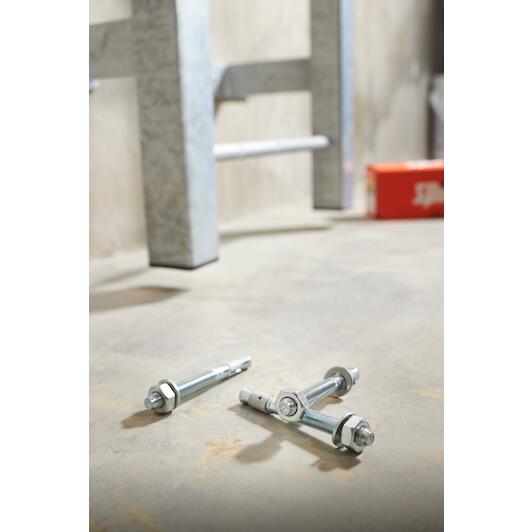

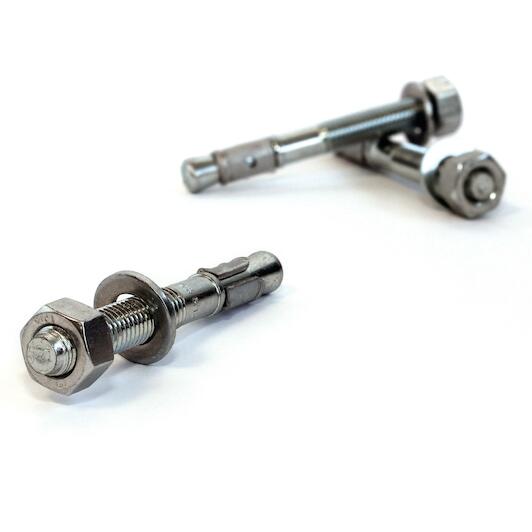

SPIT 057490 FIX 3 segment anchor M20X150/10 zinc-plated (incl. nut and washer pre-mounted)

Name: SPIT 057490 FIX 3 segment anchor M20X150/10 zinc-plated (incl. nut and washer pre-mounted)
Brand: SPIT
SKU: 02383873
Price: 6.5 EUR
Availability: PreOrder

Supplier number: SPIT 057490 | EAN 3439510574904

6.50 tax incl.

€5.37 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

The minimum purchase order quantity for the product is 10.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Alternative to this product

FISCHER 45577 rapid-action anchor FBN II...

5.72

€4.73 excl. VAT

Delivery time average 1 days.

Robust heavy fastenings with Spit

Practical benefits

High load capacity: You achieve reliable anchoring for heavy construction elements in non-cracked concrete with the solid M20 steel bolt.
Ready for immediate installation: The pre-assembled nut and washer save you valuable time during structural mounting on site.
Durable zinc plating: The zinc-plated coating protects the steel against wear and corrosion during regular indoor use.

In a nutshell

The right choise for

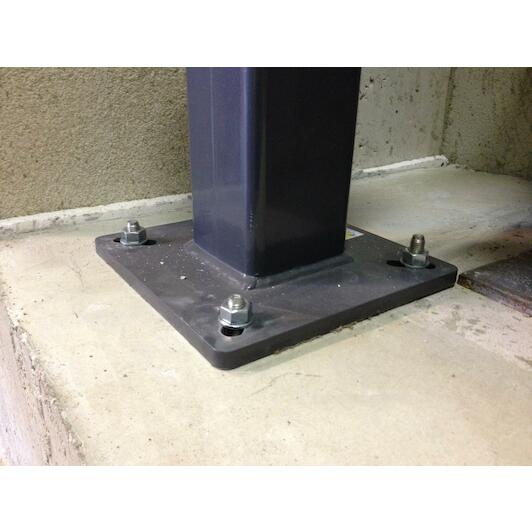

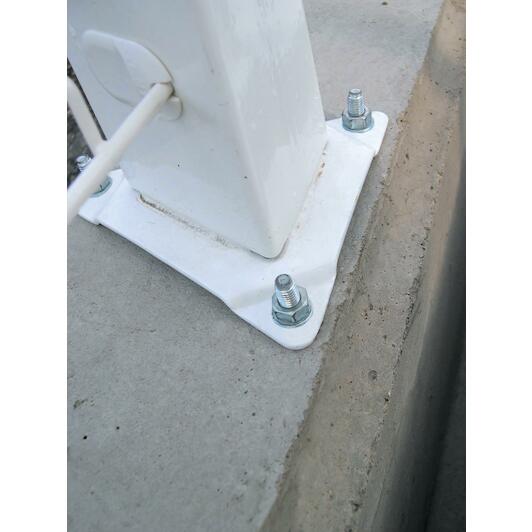

With the Spit fix 3 wedge anchor M20X150/10, you achieve dependable anchoring for heavy structural loads in non-cracked concrete and solid stone. Featuring a solid M20 steel bolt with an overall length of 150 mm and a fixture thickness of 10 mm, it allows you to secure structural steel columns, base plates, and heavy machinery securely in dry indoor environments. The anchor requires a 20 mm drill hole and comes ready for immediate installation with a pre-mounted nut and washer, saving valuable time on the job site. In addition, the zinc-plated finish reliably protects the steel against wear.

Product information FAQ

€6.50

tax incl.

Key features according to our expert

Drilling diameter: 20 mm
Effective length: 10 mm
Overall length: 150 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M20

Product description

Pierce fitting for heavy loads in non-cracked concrete
ETA approved quality anchor for standard applications
ETA option 7 for use in non-cracked concrete
Achieves the highest loads for an ETA option 7 approved anchor
Fast expansion thanks to special segment design
Extra large washer for a wide range of applications
Long thread for flexible fixing thickness

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating

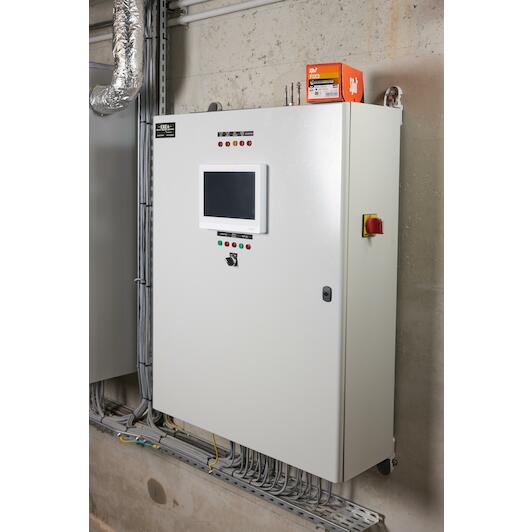

HVAC

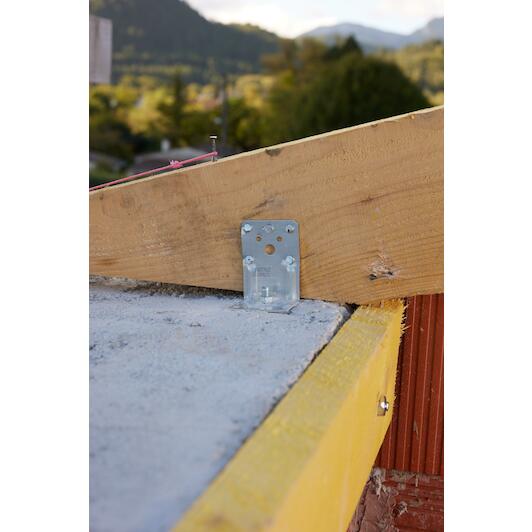

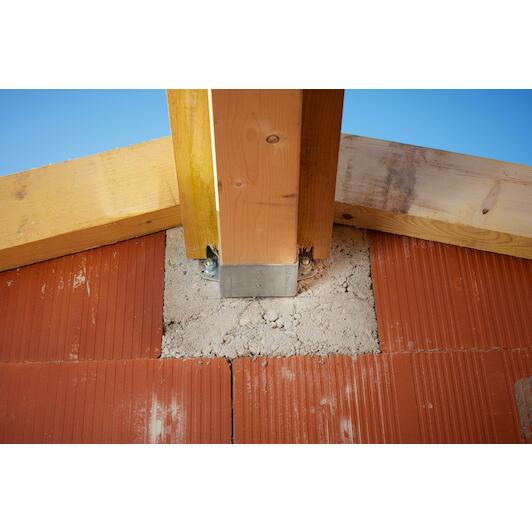

Wooden structures

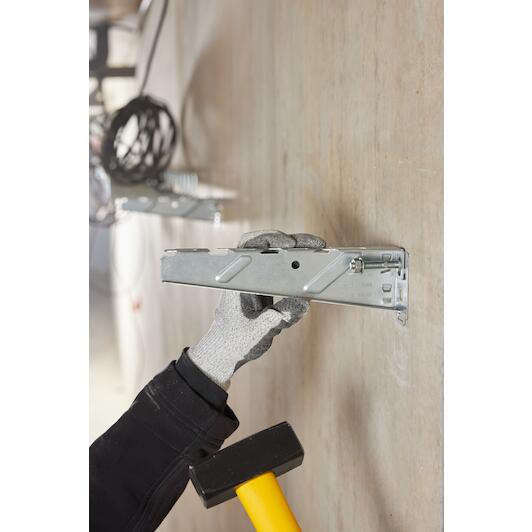

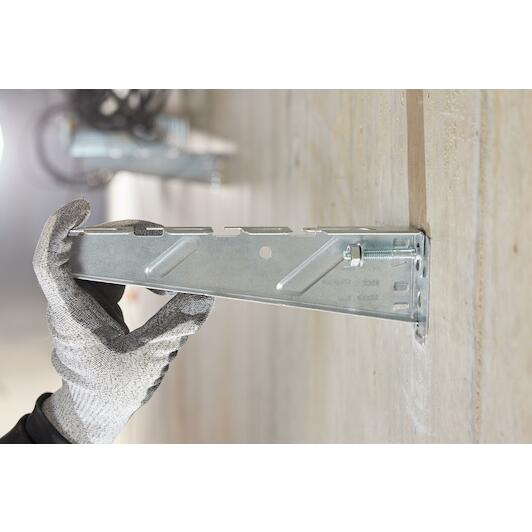

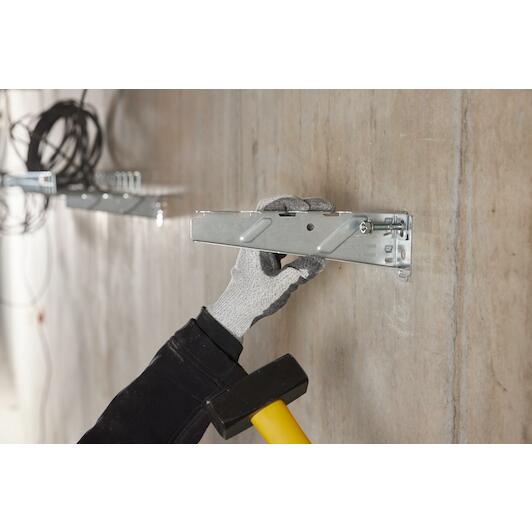

Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Drilling diameter: 20 mm
Effective length: 10 mm
Overall length: 150 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M20
Anchor diameter: 20.0 mm
Min. thickness of base material: 200 mm
Tightening torque: 160 N-m
Maximum trapping: 10 mm
Head type: Loose nut head
Min. anchor distance: 100 mm
Base material colour: GREY
Drill diameter: 20.0 mm
Product material: Carbon steel
Min. edge distance (mm): 120 mm
Treatment: Galvanised
Minimum drilling depth: 130 mm
Maximum installation depth: 100 mm
Minimum placement depth: 100.0
Base material: Non-cracked concrete
Throughput diameter: 22 mm
Anchor length: 150 mm
Surface treatment: Galvanised
Wire diameter: M20
Key size: 30.0 mm
Anchor screw material: Steel

Brand SPIT
02383873
EAN 3439510574904
Supplier number SPIT 057490

Frequently asked questions about this product

Answered by specialists

Which base materials is this wedge anchor suitable for?: This Spit FIX 3 anchor is designed for heavy-duty fixings in non-cracked concrete and solid stone with ETA option 7 approval.
What drill diameter do you need for installation?: You need a drill hole diameter of 20 mm in the base material to install this M20 anchor.
What is the maximum fixture thickness for this anchor?: The fixture thickness is 10 mm, allowing you to secure materials up to a maximum thickness of 10 mm.
Does the anchor come with a nut and washer?: Yes, the wedge anchor is supplied complete with a pre-mounted nut and washer ready for installation.
Is this zinc-plated anchor suitable for outdoor use?: Zinc-plated steel is intended for dry indoor environments. For outdoor or damp conditions, choose stainless steel.
