SPIT

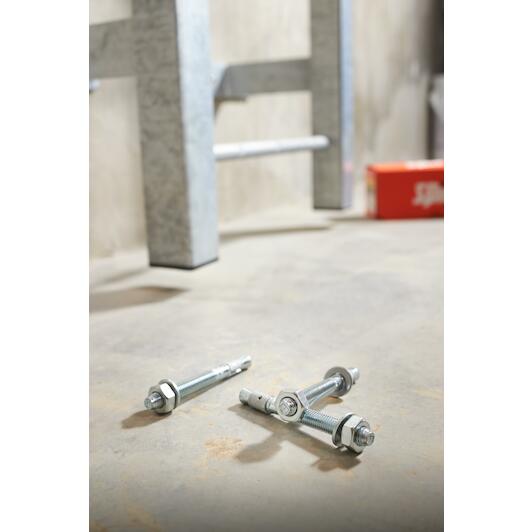

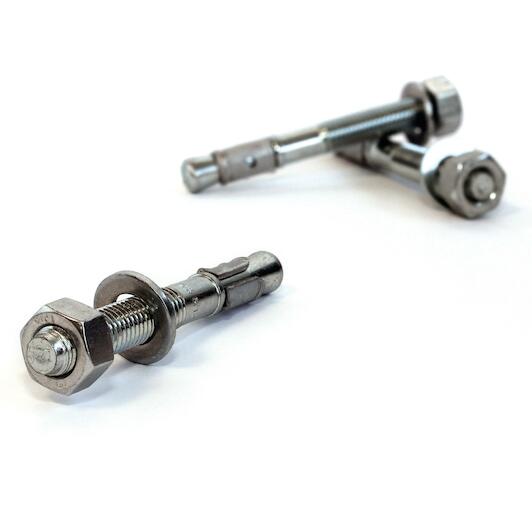

SPIT 057450 FIX 3 segment anchor M8X55/5 zinc-plated (incl. nut and washer pre-mounted)

0.58 tax incl.
€0.48 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

The minimum purchase order quantity for the product is 100.

  • Delivery by DHL

Product description

  • Pierce fitting for heavy loads in non-cracked concrete
  • ETA approved quality anchor for standard applications
  • ETA option 7 for use in non-cracked concrete
  • Achieves the highest loads for an ETA option 7 approved anchor
  • Fast expansion thanks to special segment design
  • Extra large washer for a wide range of applications
  • Long thread for flexible fixing thickness

Applications

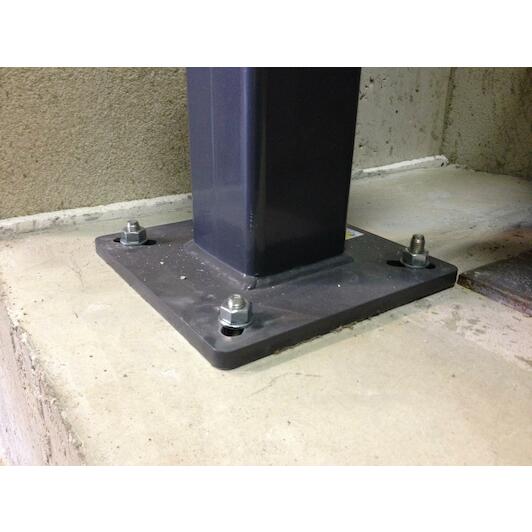

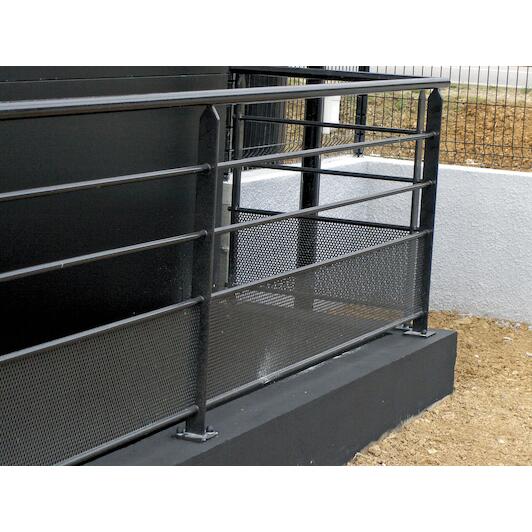

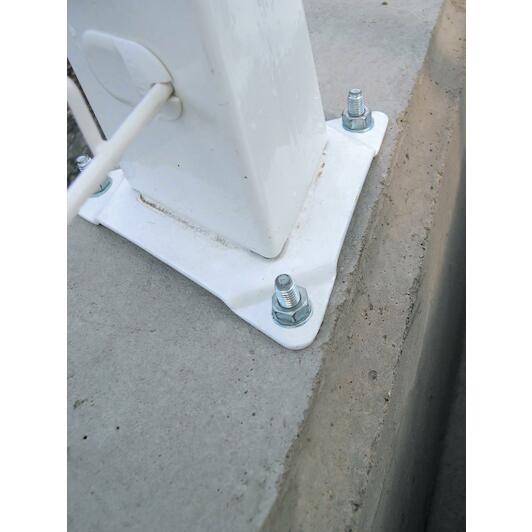

  • Steel structures
  • Stairs
  • Pull and pressure braces
  • Purlin shoe
  • Stadium seating

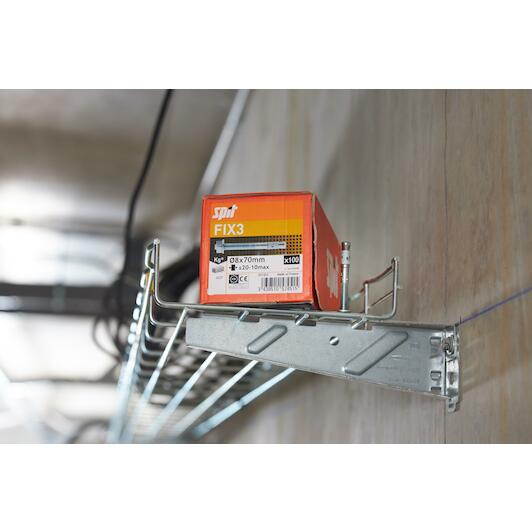

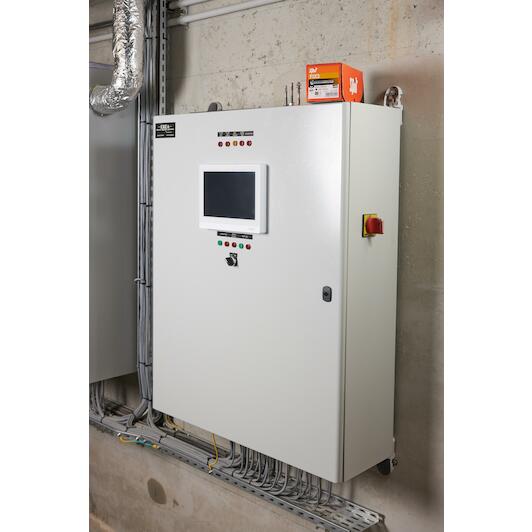

  • HVAC

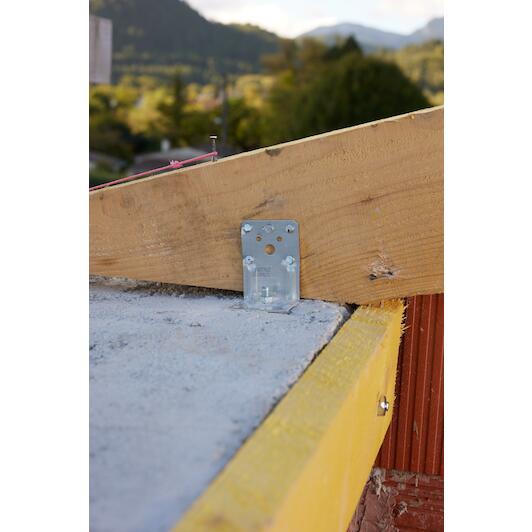

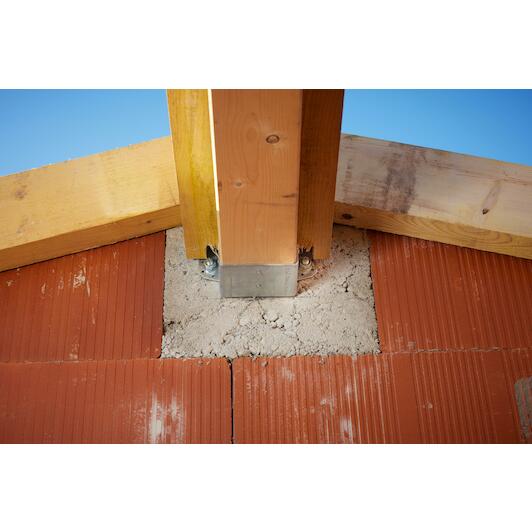

  • Wooden structures

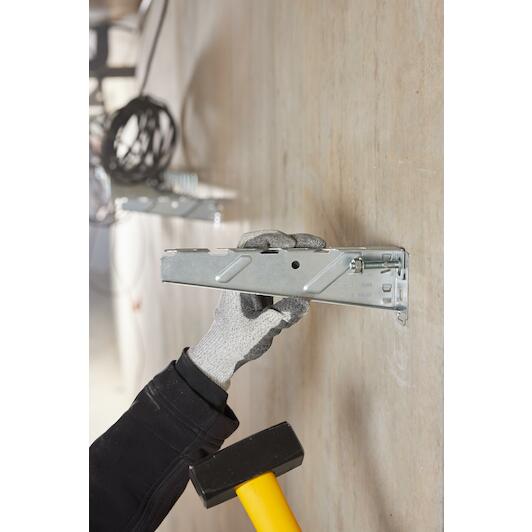

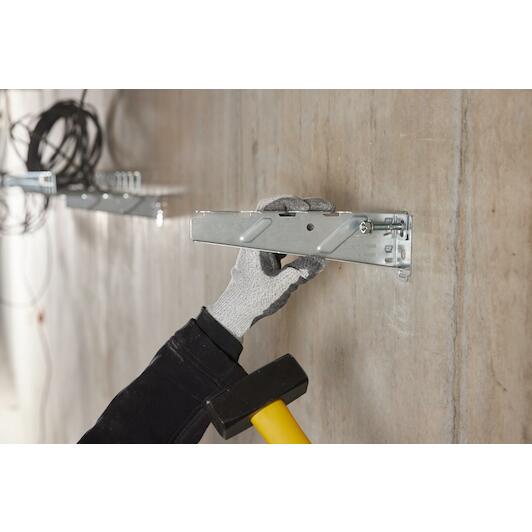

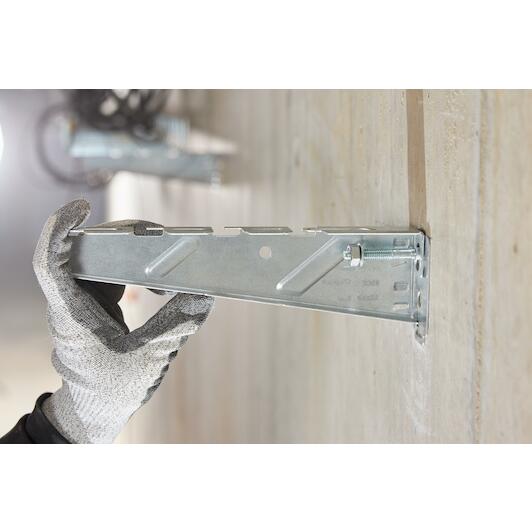

  • Brackets
  • Metal brackets
Key features according to our expert
  • Drilling diameter: 8 mm
  • Effective length: 5 mm
  • Overall length: 55 mm
  • Material (bolt): Steel
  • Surface treatment (bolt): Zinc plated
  • Thread dimension: M8
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510574508
  • Supplier number: SPIT 057450
Drilling diameter
8 mm
Effective length
5 mm
Overall length
55 mm
Material (bolt)
Steel
Surface treatment (bolt)
Zinc plated
Thread dimension
M8
Min. anchor distance
40 mm
Tightening torque
15 N-m
Maximum trapping
5 mm
Anchor diameter
8.0 mm
Product material
Carbon steel
Base material colour
GREY
Head type
Loose nut head
Minimum drilling depth
50 mm
Min. edge distance (mm)
50 mm
Treatment
Galvanised
Min. thickness of base material
80 mm
Throughput diameter
9 mm
Drill diameter
8.0 mm
Minimum placement depth
30.0 mm
Base material
Non-cracked concrete
Anchor length
55 mm
Surface treatment
Galvanised
Wire diameter
M8
Key size
13.0 mm
Anchor screw material
Steel
