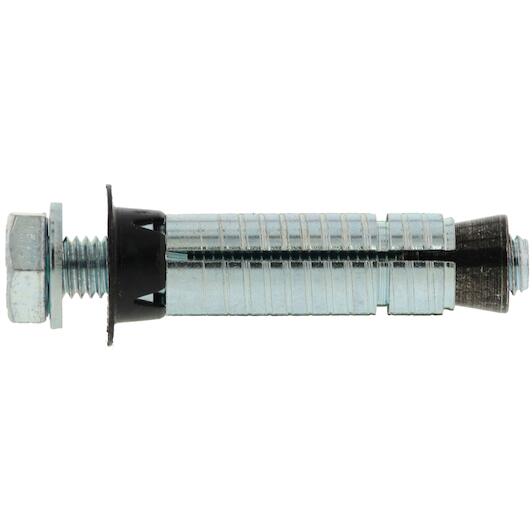

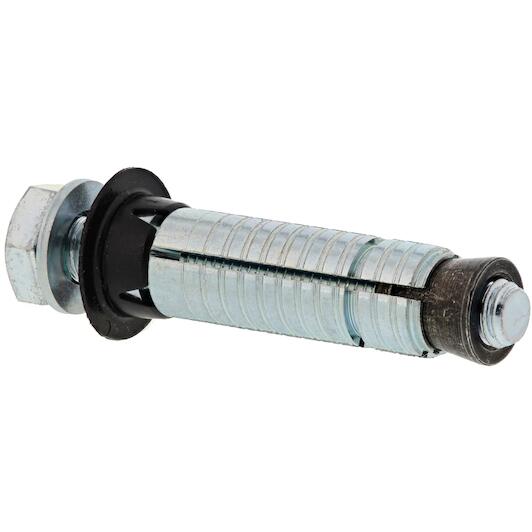

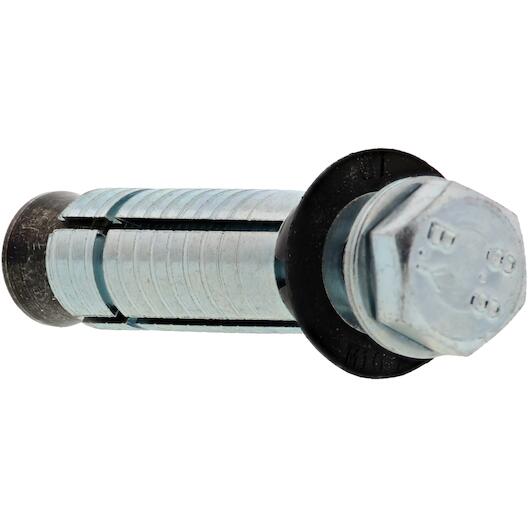

SPIT 050406 PRIMA l spread anchor M8x14/10 zinc-plated (with bolt and washer)

SPIT
Supplier number: SPIT 050406 | EAN 3439510504062
2.92 tax incl.
€2.41 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

The minimum purchase order quantity for the product is 25.

  • Delivery by DHL
✆ Talk to a specialist


Product information
€2.92
tax incl.

Product information

Key features according to our expert

  • Wire dimension: 8 mm
  • Material: Steel
  • Surface treatment: Zinc plated
  • Safety anchor: No
  • Drilling diameter: 14 mm

Product description

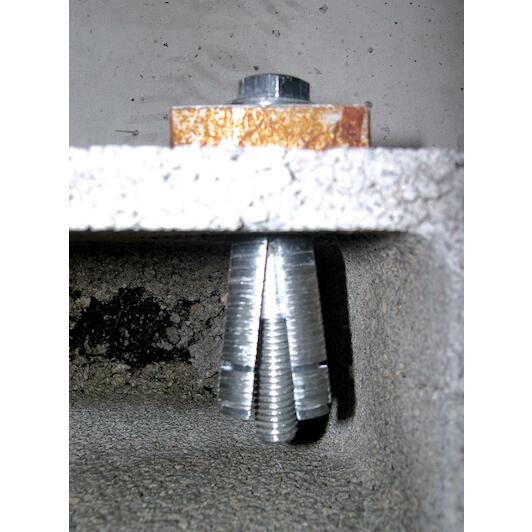

  • Metal mechanical anchor with large spread
  • Universal demountable metal spread anchor

  • Applications

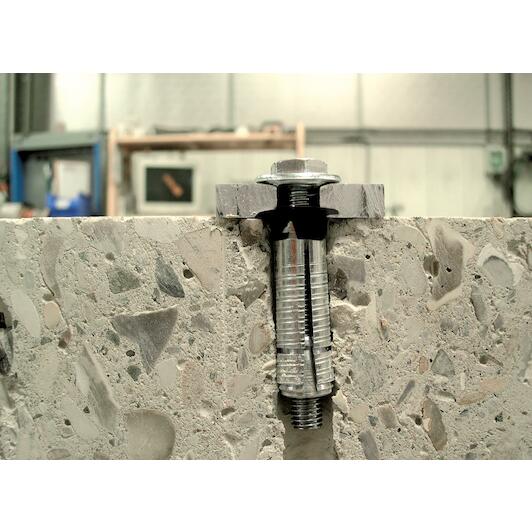

    • Fastening of industrial doors, roller tracks, facades, fall protection, window cleaning systems

All Features

Wire dimension
8 mm
Material
Steel
Surface treatment
Zinc plated
Safety anchor
No
Drilling diameter
14 mm
Minimum wire length
60.0 mm
Maximum trapping
10 mm
Anchor diameter
14.0 mm
Internal thread diameter
8.0 mm
Head type
Hexagon head
Min. anchor distance
70 mm
Base material colour
PURPLE
Min. thickness of base material
100 mm
Product material
Carbon steel
Min. edge distance (mm)
55 mm
Treatment
Galvanised
Tightening torque
25 N-m
Maximum installation depth
42 mm
Minimum drilling depth
65 mm
Drill diameter
14.0 mm
Throughput diameter
10 mm
Anchor length
60 mm
Wire diameter
M8
Key size
13.0 mm
Anchor screw material
Steel
  • Brand SPIT
  • EAN 3439510504062
  • Supplier number SPIT 050406
