SPIT 050262 DYNABOLT HB spread anchor M12x110/49 zinc-plated (with bolt and washer)

Name: SPIT 050262 DYNABOLT HB spread anchor M12x110/49 zinc-plated (with bolt and washer)
Brand: SPIT
SKU: 02345679
Price: 3.09 EUR
Availability: PreOrder

3.09 tax incl.

€2.55 excl. VAT (incl. all environmental contributions)

SPIT 050262 DYNABOLT HB spread anchor M12x110/49 zinc-plated (with bolt and washer)

€3.09

On order: delivered from 28/05/2026

each

The minimum purchase order quantity for the product is 10.

Delivery by DHL

Product information

Product description

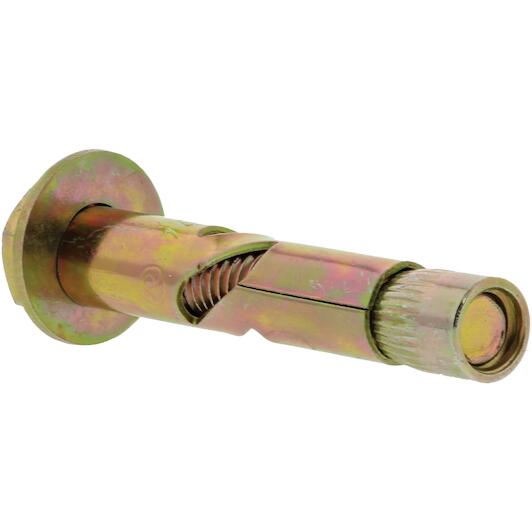

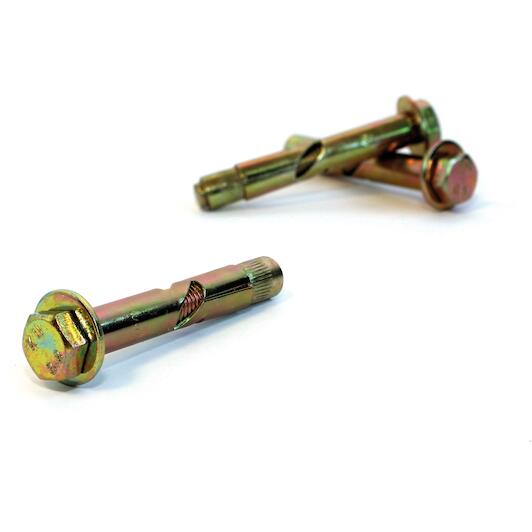

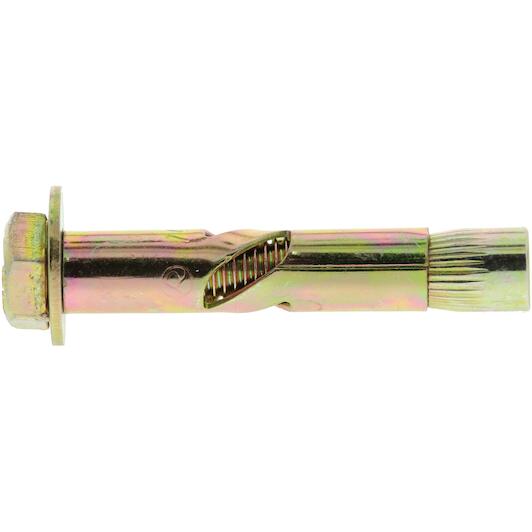

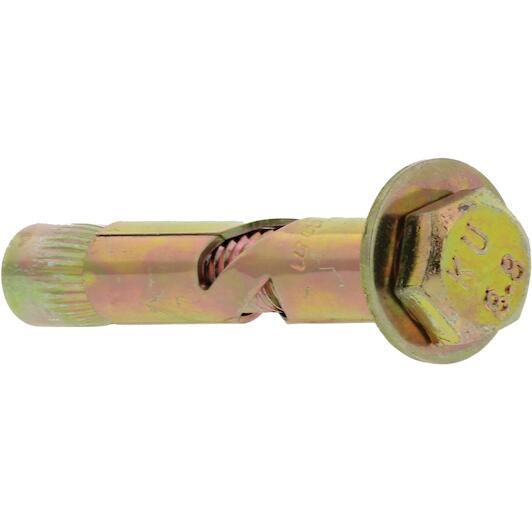

Sleeve anchor for medium loads
Spreading anchor for medium loads with hexagonal head
Push-through assembly for easy and quick fixing
Hexagon head for beautiful finish
Integrated compression system for perfect flattening
Especially for masonry and concrete applications
Low indentation effect adapted for wood or hollow sections

Applications

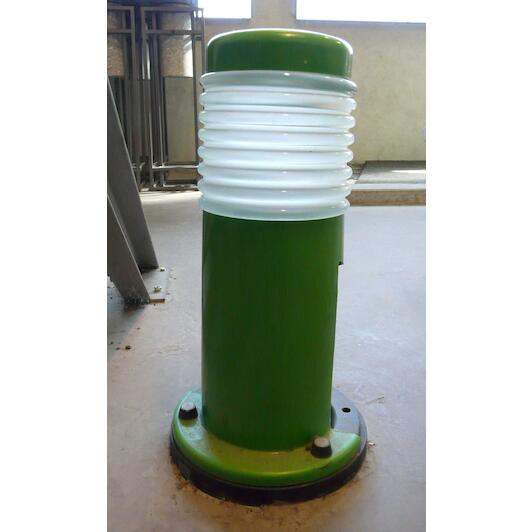

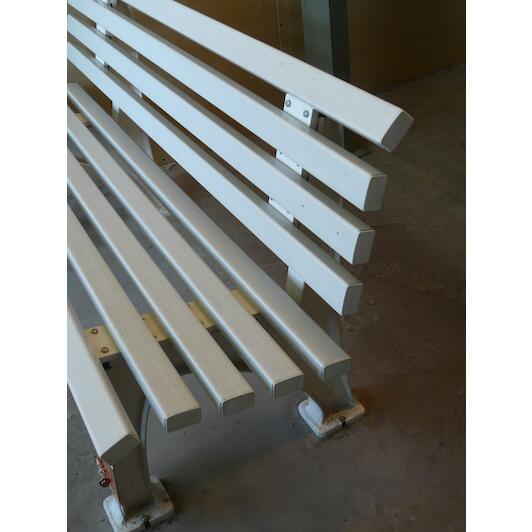

Urban furniture
Signposting
Cable ducts

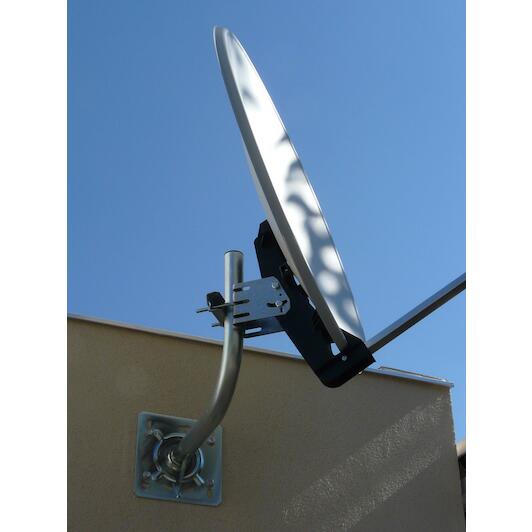

Satellite dish
Air conditioning system
Railings

Key features according to our expert

Wire dimension: 12 mm
Overall length: 110 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 16 mm

Specifications / All features

Brand: SPIT
02345679
EAN: 9314772018240
Supplier number: SPIT 050262

Wire dimension: 12 mm
Overall length: 110 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 16 mm
Anchor diameter: 16.0 mm
Tightening torque: 70 N-m
Anchoring depth: 44 mm
Maximum trapping: 49 mm
Head type: Hexagon head
Min. anchor distance: 90 mm
Base material colour: BROWN
Minimum drilling depth: 65 mm
Product material: Carbon steel
Min. edge distance (mm): 100 mm
Treatment: Galvanised
Min. thickness of base material: 95 mm
Maximum installation depth: 44 mm
Drill diameter: 16.0 mm
Base material: Hollow blocks, Hollow floor beams, Non-cracked concrete, Solid brick
Throughput diameter: 18 mm
Anchor length: 110 mm
Wire diameter: M12
Key size: 19.0 mm
Anchor screw material: Steel
