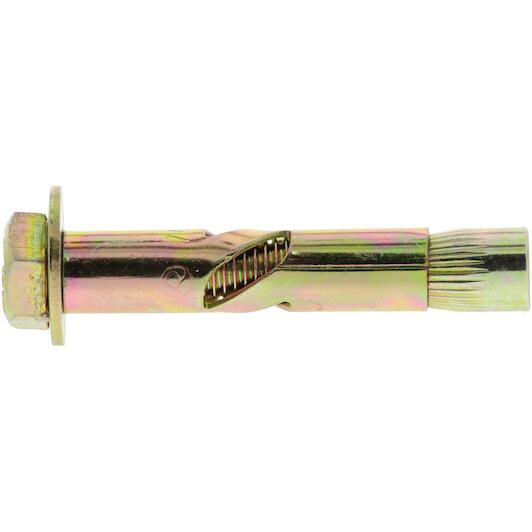

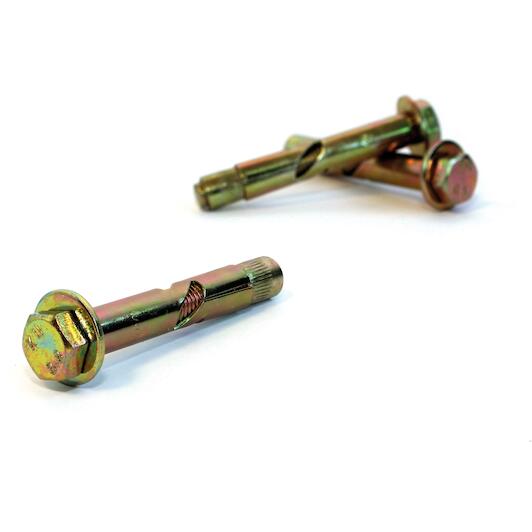

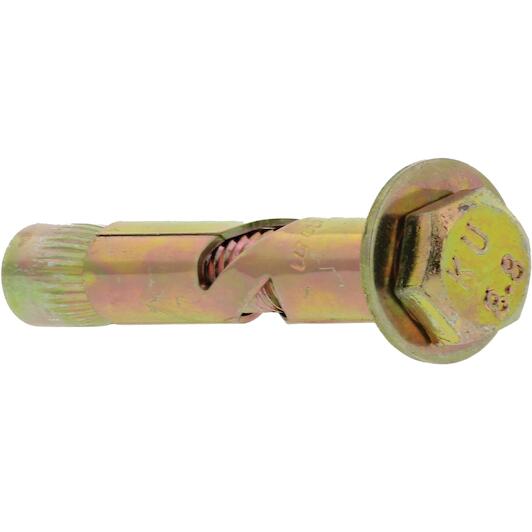

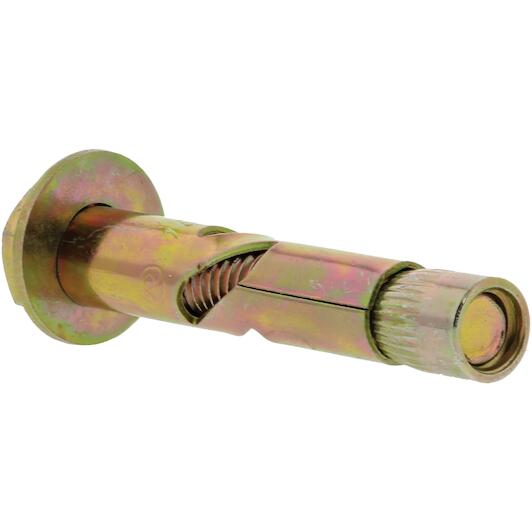

SPIT 050259 DYNABOLT HB spread anchor M10x75/18 zinc-plated (with bolt and washer)

Name: SPIT 050259 DYNABOLT HB spread anchor M10x75/18 zinc-plated (with bolt and washer)
Brand: SPIT
SKU: 02345682
Price: 1.46 EUR
Availability: InStock

1.46 tax incl.

€1.21 excl. VAT (incl. all environmental contributions)

SPIT 050259 DYNABOLT HB spread anchor M10x75/18 zinc-plated (with bolt and washer)

€1.46

On stock, immediately available.

each

The minimum purchase order quantity for the product is 25.

Delivery by DHL

Alternative to this product

FISCHER FSA 12x85/25 S sleeve anchor with...

1.39

€1.15 excl. VAT

Delivery time average 14 days.

Product information

Product description

Sleeve anchor for medium loads
Spreading anchor for medium loads with hexagonal head
Push-through assembly for easy and quick fixing
Hexagon head for beautiful finish
Integrated compression system for perfect flattening
Especially for masonry and concrete applications
Low indentation effect adapted for wood or hollow sections

Applications

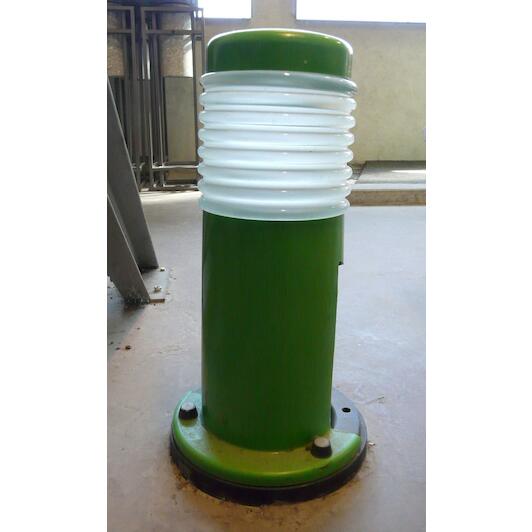

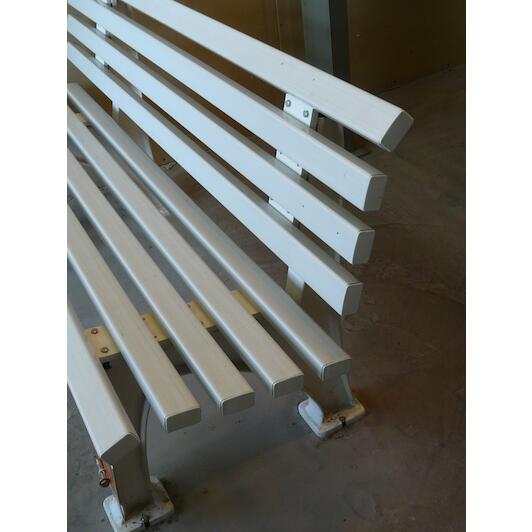

Urban furniture
Signposting
Cable ducts
Satellite dish
Air conditioning system
Railings

Key features according to our expert

Wire dimension: 10 mm
Overall length: 75 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm

Specifications / All features

Brand: SPIT
02345682
EAN: 9314772018219
Supplier number: SPIT 050259

Wire dimension: 10 mm
Overall length: 75 mm
Material: Steel
Surface treatment: Zinc plated
Safety anchor: No
Drilling diameter: 12 mm
Anchor diameter: 12.0 mm
Tightening torque: 40 N-m
Anchoring depth: 44 mm
Maximum trapping: 18 mm
Head type: Hexagon head
Min. anchor distance: 70 mm
Base material colour: BROWN
Minimum drilling depth: 65 mm
Product material: Carbon steel
Min. edge distance (mm): 75 mm
Treatment: Galvanised
Min. thickness of base material: 80 mm
Maximum installation depth: 44 mm
Drill diameter: 12.0 mm
Base material: Hollow blocks, Hollow floor joists, Non-cracked concrete, Solid brick
Throughput diameter: 14 mm
Anchor length: 75 mm
Wire diameter: M10
Key size: 17.0 mm
Anchor screw material: Steel
