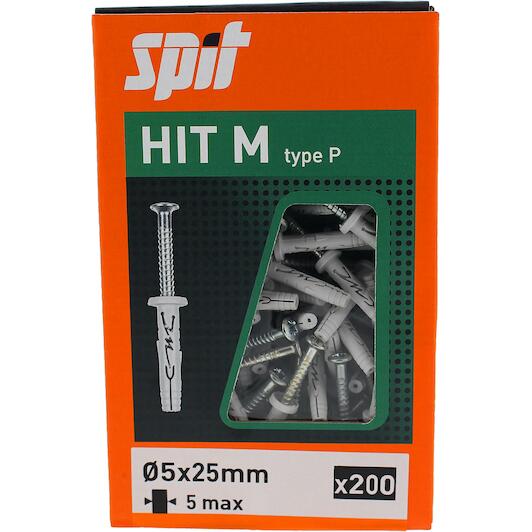

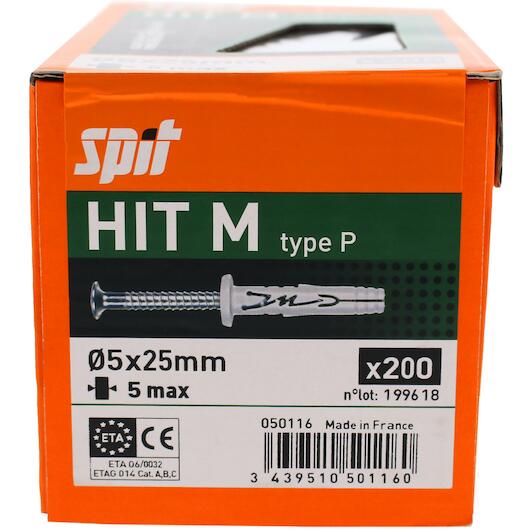

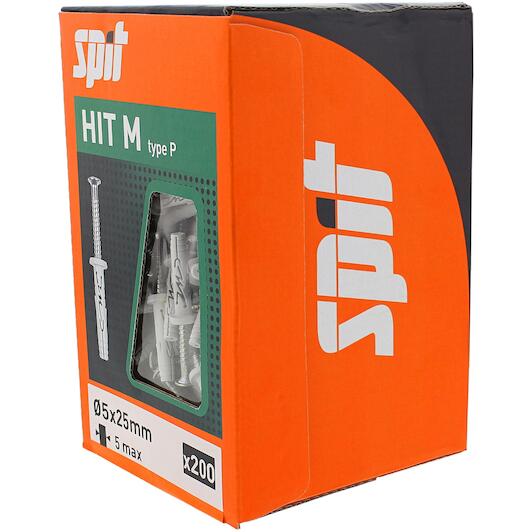

SPIT 050116 hammerhead plug with collar P HIT M 5x25/5

Name: SPIT 050116 hammerhead plug with collar P HIT M 5x25/5
Brand: SPIT
SKU: 02345207
Price: 0.11 EUR
Availability: InStock

Supplier number: SPIT 050116 | EAN 3439510501160

0.11 tax incl.

€0.09 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 200.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

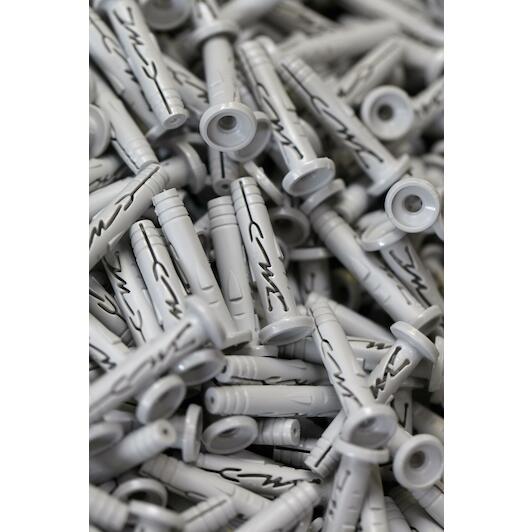

Spit HIT M hammer-in plug with collar for masonry

Practical benefits

Fast hammer installation method: You drive the plug directly in with a hammer, speeding up repetitive fastening tasks.
Flush seating with collar: The integrated collar prevents deep slipping and ensures tight clamping against the fixture.

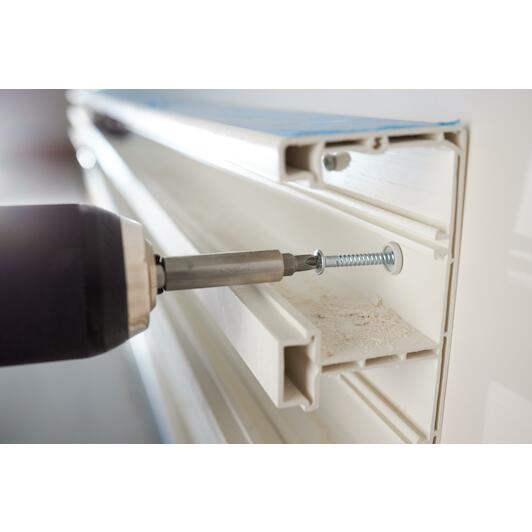

Removable with PZ2 drive: You can easily back out the screw with a screwdriver whenever adjustment is required.

In a nutshell

The right choise for

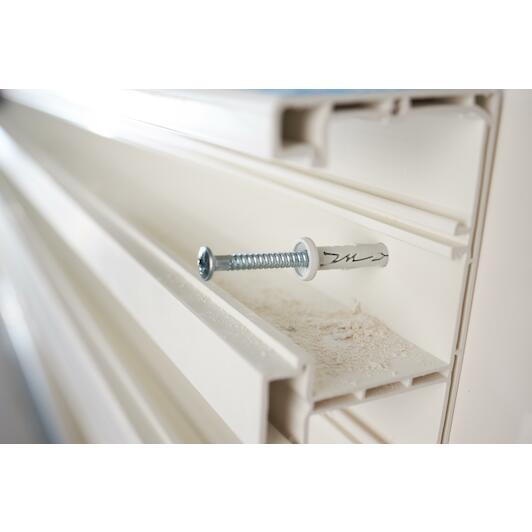

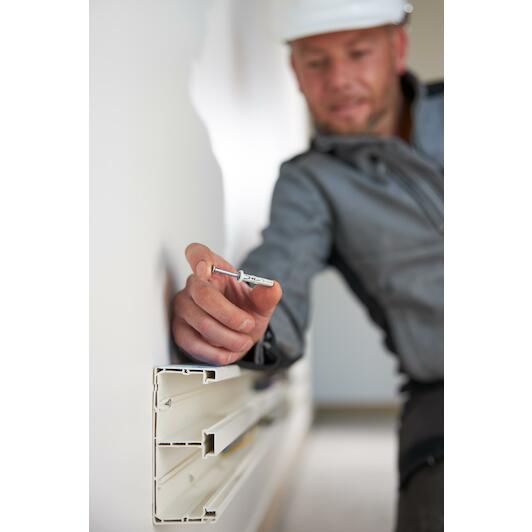

With the Spit hit M 5X25/5 hammer-in plug with collar, you can complete fastening tasks quickly and efficiently. You drive this plastic plug and screw directly into place with a hammer, speeding up repetitive installations of battens, skirting boards, or cable conduits in brick and aerated concrete. The integrated collar prevents the anchor from sinking too deep into the 5 mm drill hole and delivers tight clamping pressure on fixtures up to 5 mm thick. Whenever adjustment or removal is required, the PZ2 screw head allows you to back it out easily.

Product information FAQ

€0.11

In stock - tax incl.

Key features according to our expert

Length (Wall plug): 27 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
type (screw head): PZ2
Drilling diameter: 5 mm

Product description

High-performance percussion plug with collar for in all materials
Easy to install and suitable for all materials
CE certified percussion plug
Spreading through hammer blows
Perfect pressure due to flat collar
Very good performance in hollow materials
Flat finish due to countersunk head
Available with large collar (Hit M-P20)

Applications

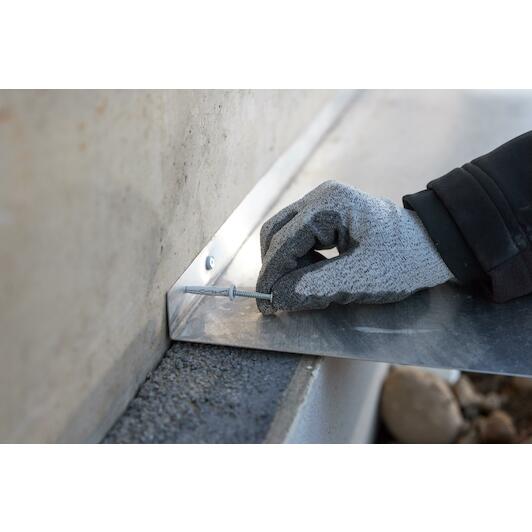

Electrical installations

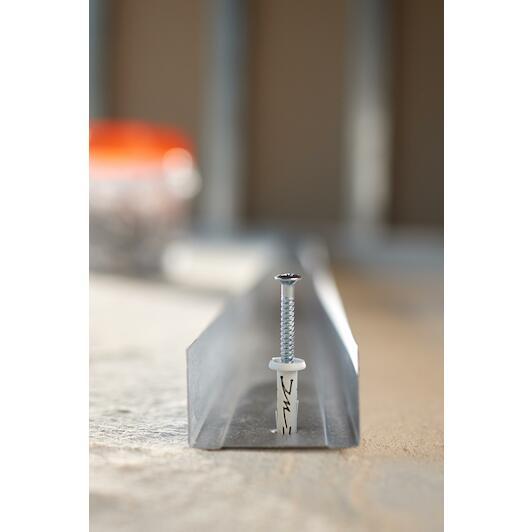

Metal stud profile
Beams and rafters
Signalling
Insulation supports
Skirting boards

Documents

⤓ Declaration of Conformity PDF

All Features

Length (wall plug): 27 mm
Material (wall plug): Plastic
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Brick; Aerated concrete
Type (screw head): PZ2
Drilling diameter: 5 mm
Maximum trapping: 5 mm
Bit size: PZ 2
Anchoring depth: 20 mm
Product material: Nylon
Anchor diameter: 5.0 mm
Min. anchor distance: 100 mm
Base material colour: PURPLE
Head type: Flat head
Minimum drilling depth: 30 mm
Min. thickness of base material: 100 mm
Surface treatment: Galvanised
Drill diameter: 5.0 mm
Maximum installation depth: 20 mm
Throughput diameter: 5 mm
Anchor length: 27 mm
Head diameter: 9.0 mm
Min. edge distance (mm): 100 mm

Brand SPIT
02345207
EAN 3439510501160
Supplier number SPIT 050116

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this hammer-in plug?: You need a drill bit with a diameter of 5 mm.
Which substrates are suitable for this anchor?: This plastic hammer-in plug is suitable for installation in brick and aerated concrete.
What is the maximum fixture thickness for this plug?: The maximum fixture thickness you can fix is 5 mm.
Which bit type does the included screw require?: The screw features a PZ2 drive head.
What is the benefit of the collar on this plug?: The collar prevents the plug from slipping deeper into the borehole and ensures clean clamping pressure on the fixture.
