SKF

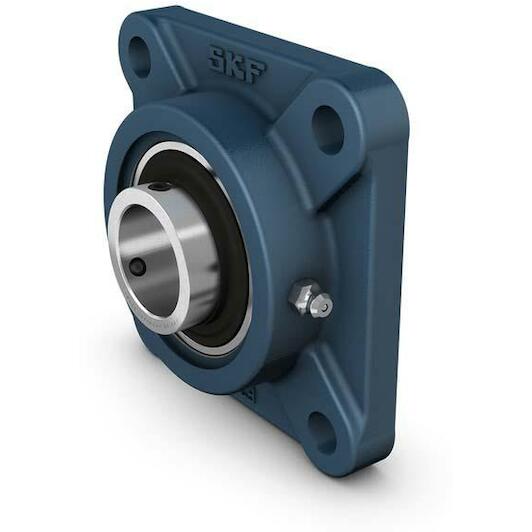

SKF UCF 211/H ball bearing unit with square flange and locking with set screw, cast iron bearing housing, JIS

Recommended Retail Price €169.16
83.60 tax incl.
€69.09 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Delivery by DHL

Product description

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 55 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Square
Specifications / All features
  • Brand: SKF
  • EAN: 7316579751612
  • Supplier number: SKF UCF 211/H
Shaft diameter
55 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Square
Material, bearing
Bearing steel
Number of bolt holes for fasteners
4
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Housing type
Flanged
Flanged housing type
Square
Bearing width, total
55.6
Application
For material handling applications
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
5
Grease fitting
With
Material, housing
Cast iron
Basic static load rating
29
Attachment bolt diameter
16
Retaining feature, inner ring
Set screws
Basic dynamic load rating
43.6
Coating
Without
Housing overall width
43
Centre distance between bolt holes
130
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
3000
Width, total
58.4
Sealing, unit
Optional end cover
Set screw
M10x1
