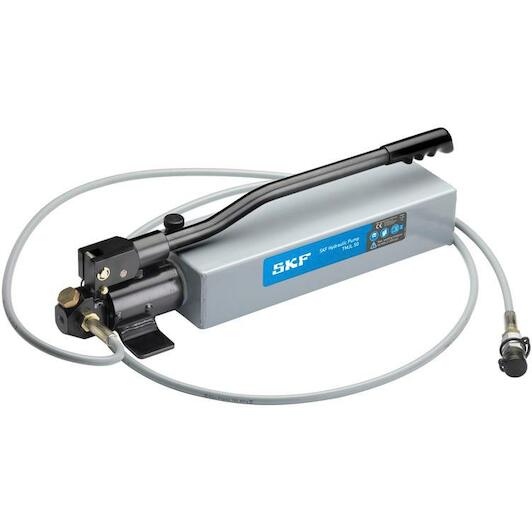

SKF TMJL 50 hydraulic hand pump

Supplier number: SKF TMJL 50 | EAN 7316570551303

2,721.20 tax incl.

€2,248.93 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€2,721.20

tax incl.

Key features according to our expert

Max. working pressure: 500 bar

Scope of delivery

Pump with mounting fluid
pressure hose
quick connection coupling
quick connection nipple
tool case
1l can of mounting fluid

Product description

The SKF TMJL 50 is mainly intended for larger SKF Hydraulic Nuts and SKF OK Coupling hydraulic chambers, but is also suitable for applications where a maximum pressure of 500 bar (50 MP a / 7250 psi) is required. Supplied in a sturdy carrying case.

Large oil container capacity 2700 cm³ (165 in³)
Over pressure valve and connection port for a pressure gauge
Packed in a sturdy carrying case
Supplied with an extra litre of fluid

Documents

⤓ Technical data sheet PDF

All Features

Max. working pressure: 500 bar
Pressure gauge: No
Connection nipple: G 1/4 (male)
Dimensions (w x l x h): 120 x 635 x 185 mm
Housing material: Steel pump body
Recommended storage temperature: 10-40
Case dimensions (l x h x w): 715 x 280 x 355 mm
Suitable for hydraulic nut hmv - smallest: 62
Operating temperature range: 10-35
Volume per stroke, 2nd stage: 3.5 cm³
Oil container capacity: 2700
Type of pump: Single stage
Suitable for hydraulic nut hmv - largest: 200
Suitable for drive up method: No
Volume per stroke: 35
Relative humidity: 0 to 75%, non-condensing
Product weight: 14.8
Hose length: 3000
Color code: Grey;Black
Model: Hand operated pump
Maximum pressure: 500

Brand SKF
01901247
EAN 7316570551303
Supplier number SKF TMJL 50
