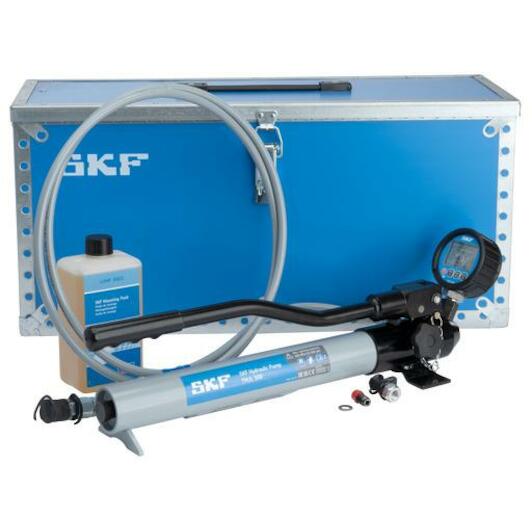

SKF TMJL 100DU 100 MPa hydraulic hand pump in case

SKF
Supplier number: SKF TMJL 100DU | EAN 7316575833978
3,447.20 tax incl.
€2,848.93 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information Accessories
€3,447.20
tax incl.

Product information

Key features according to our expert

  • Max. working pressure: 1000 bar

Scope of delivery

  • Pump with mounting fluid
  • pressure hose
  • quick connection coupling
  • quick connection nipple
  • digtial pressure gauge
  • carrying case
  • 1l can of mounting fluid

Product description

The SKF TMJL 100 pump is mainly intended for use with hydraulic nuts (up to HMV 92E) to mount bearings or components where a maximum pressure of 1000 bar (100 MPa / 14500 psi) is required. Supplied with a digital pressure to enable the SKF Drive-up Method to be used for mounting rolling element bearings. Supplied in a sturdy carrying case. The TMJL 100DU can be used for oil injection applications for removing rolling element bearings and is suitable for use with SKF Hydraulic Assisted Pullers TMHP series.

  • Oil container capacity 800 cm³(48 in³)
  • Fitted with a digital pressure gauge
  • Packed in a sturdy carrying case
  • Supplied with an extra litre of fluid

All Features

Max. working pressure
1000 bar
Pressure gauge
Yes, digital
Connection nipple
G 1/4 (male)
Dimensions (w x l x h)
140 x 635 x 195 mm
Housing material
Steel pump body
Recommended storage temperature
10-40
Case dimensions (l x h x w)
715 x 280 x 355 mm
Suitable for hydraulic nut hmv - smallest
9
Operating temperature range
10-35
Volume per stroke, 2nd stage
1.0 cm³
Oil container capacity
800
Type of pump
Single stage
Suitable for hydraulic nut hmv - largest
92
Suitable for drive up method
Yes
Volume per stroke
10
Relative humidity
0 to 75%, non-condensing
Product weight
9.6
Hose length
3000
Color code
Grey;Black
Model
Hand operated pump
Maximum pressure
100
  • Brand SKF
  • EAN 7316575833978
  • Supplier number SKF TMJL 100DU
