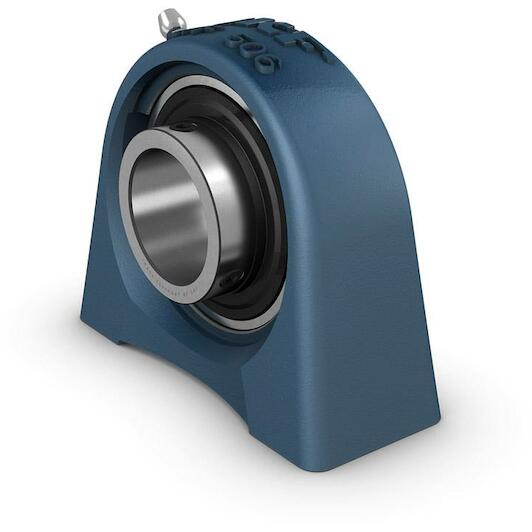

SKF SYF 45 TF ball bearing unit 45 mm

SKF
Supplier number: SKF SYF 45 TF | EAN 7316570783728
Recommended Retail Price €228.85
113.20 tax incl.
€93.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€113.20
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 45 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Ready to mount
  • Designed for a constant and alternating rotation
  • Lubricated and sealed bearing
  • High degree of stiffness
  • Narrow design

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
45 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Housing type
Pillow block
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Application
For material handling applications
Set screw
M8x1
Number of bolt holes for fasteners
2
Hexagonal key size for set screw
4
Tightening torque, set screw
6.5
Centre height (pillow block)
54
Grease fitting
With
Material, housing
Cast iron
Note
Limiting speed with shaft tolerance h6
Bearing width, total
49.2
Basic static load rating
21.6
Basic dynamic load rating
33.2
Coating
Without
Housing overall width
48
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Threaded
Limiting speed
4300
Sealing, unit
Without
Centre distance between bolt holes
95.3
Attachment thread diameter
M12
  • Brand SKF
  • EAN 7316570783728
  • Supplier number SKF SYF 45 TF
