SKF

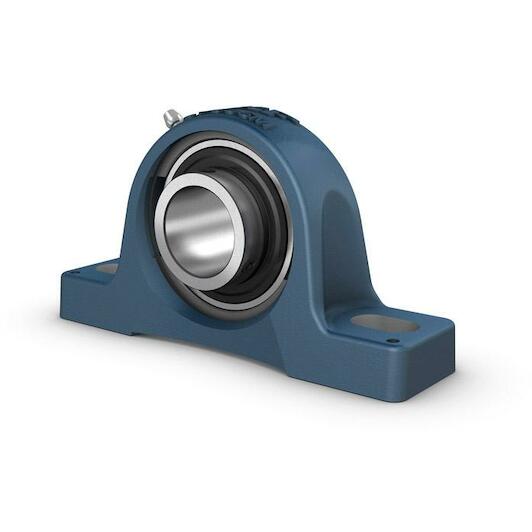

SKF SY 20 TR ball bearing unit 20 mm

Recommended Retail Price €106.94
52.80 tax incl.
€43.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 20 mm
  • Material (bearing): Steel
  • Bore type: Cylindrical
  • Limit speed: 5000 rpm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570505559
  • Supplier number: SKF SY 20 TR
Shaft diameter
20 mm
Material (bearing)
Steel
Bore type
Cylindrical
Limit speed
5000 rpm
Material (bearing housing)
Cast iron
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, multiple
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Note
Limiting speed with shaft tolerance h6
Housing type
Pillow block
Application
For material handling applications
Basic static load rating
6.55
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Centre height (pillow block)
33.3
Grease fitting
With
Material, housing
Cast iron
Number of bolt holes for fasteners
2
Centre distance between bolt holes
97
Bearing width, total
31
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
32
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
5000
Sealing, unit
Optional end cover
Attachment bolt diameter
10
Set screw
M6x0.75
