Product description:

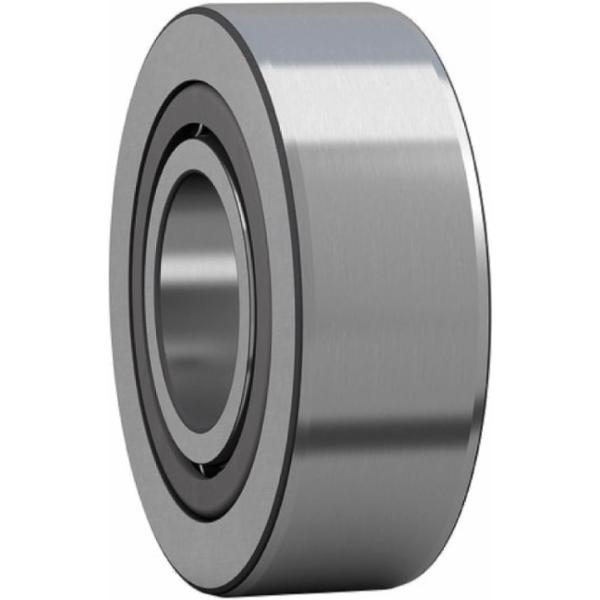

- Support roller without axial guide, with inner ring
Supplier number:
SKF STO 15
|
EAN
7316570824339
Product information
Key features according to our expert
- Inner diameter: 15 mm
- Outer diameter: 35 mm
- Width: 12 mm
All Features
- Inner diameter
- 15 mm
- Outer diameter
- 35 mm
- Width
- 12 mm
- Functional outside diameter
- 35 mm
- Material, bearing
- Bearing steel
- Cage
- With
- Width, outer ring
- 11.8 mm
- Lubricant
- Grease
- Relubrication feature
- With
- Basic static load rating
- 10.6 kN
- Radial internal clearance
- CN
- Tolerance class
- Other
- Bearing part
- Complete track roller
- Axial guidance of outer ring
- No
- Number of flanges, outer ring
- 0
- Sealing
- Without
- Width, total
- 12 mm
- Outer ring profile
- Crowned
- Limiting speed
- 5,000 r/min
- Bore diameter
- 15 mm
- Number of rows
- 1
- Basic dynamic load rating
- 9.13 kN
- Coating
- Without
- Rolling elements
- Needle rollers
- Brand SKF
- EAN 7316570824339
- Supplier number SKF STO 15
