Product description:
- Split upright bearing housing for pendulum roller bearings

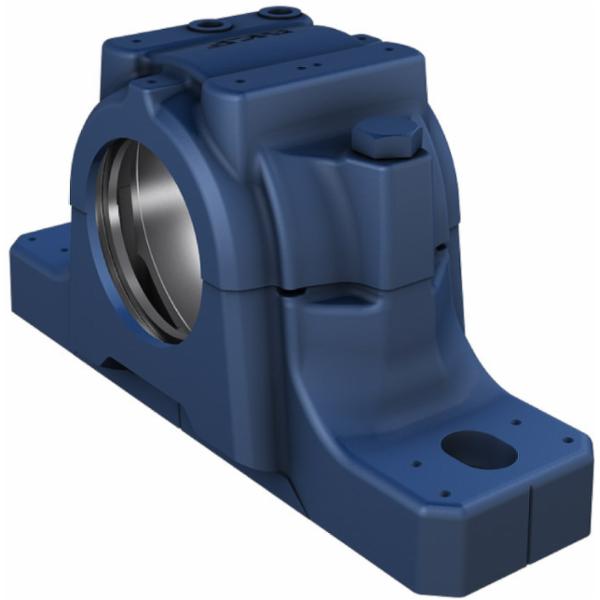

SKF SNL 528 K7 standing bearing housing cast iron two-piece 250 mm
Key features according to our expert
- Seat diameter: 250 mm
- Material (bearing housing): Cast iron
Specifications / All features
- Brand: SKF
- EAN: 7316571320304
- Supplier number: SKF SNL 528 K7
- Seat diameter
- 250 mm
- Material (bearing housing)
- Cast iron
- Housing type
- Plummer/pillow block
- Centre height (pillow block)
- 150 mm
- Housing configuration
- Two-piece
- Number of bolt holes for fasteners
- 2
- Material, housing
- Cast iron
- Centre distance between bolt holes
- 420 mm
- Diameter of bearing seat
- 250 mm
- Bearing housing seal type
- Without
- Attachment bolt diameter
- 30 mm
- Mounting arrangement
- Through shaft/Shaft end
- Housing lubrication feature/possibility
- Grease
- Width of bearing seat
- 98 mm
