SKF S7006 CDGA/P4A single-row angular contact ball bearing high load capacity, universal pairing with seals 30 mm

Recommended Retail Price €499.97

247.40 tax incl.

€204.46 excl. VAT (incl. all environmental contributions)

SKF S7006 CDGA/P4A single-row angular contact ball bearing high load capacity, universal pairing with seals 30 mm

€247.40 Recommended Retail Price €499.97

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

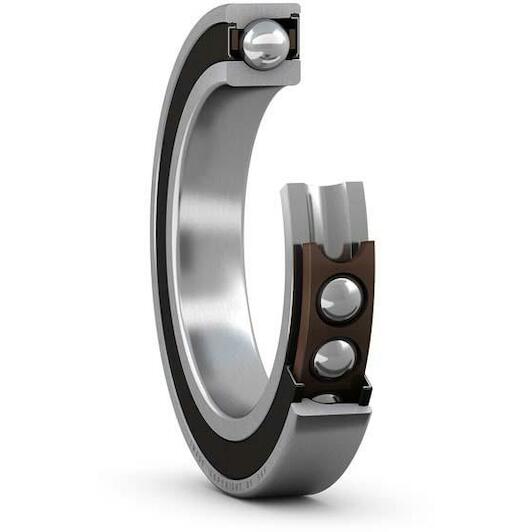

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Universally matchable
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 30 mm
Width: 13 mm
Outer diameter: 55 mm

Specifications / All features

Brand: SKF
03162918
EAN: 07316575938086
Supplier number: SKF S7006 CDGA/P4A

Inner diameter: 30 mm
Width: 13 mm
Outer diameter: 55 mm
Sealing: Seal on both sides
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Material, bearing: Bearing steel
Cage: Non-metallic
Sealing type: Non-contact
Design: High-capacity D
Lubricant: Grease
Matched arrangement: No
Basic static load rating: 8
Contact type: Normal contact (two-point contact)
Tolerance class: P4A
Ring type: One-piece inner and outer rings
Matched condition (axial clearance/ preload): Measuring load, class A
Contact angle: 15
Bore diameter: 30
Number of rows: 1
Basic dynamic load rating: 14.3
Coating: Without
Outside diameter: 55
Note: Refer to catalogue data or contact SKF for the attainable speeds
