What are the exact dimensions of the SKF RIS 204 rubber seating ring?

The ring has an outer diameter of 52.3 mm, an inner diameter of 41.2 mm, and a width of 19 mm.

What is the primary function of this rubber seating ring?

It cushions the insert bearing, dampens vibrations and noise, and accommodates slight shaft misalignment or expansion.

Which bearing housing types is the SKF RIS 204 designed for?

It is primarily intended for use in SKF pressed steel pillow block and flanged housings.

What material is the seating ring made of?

The seating ring is made of rubber.

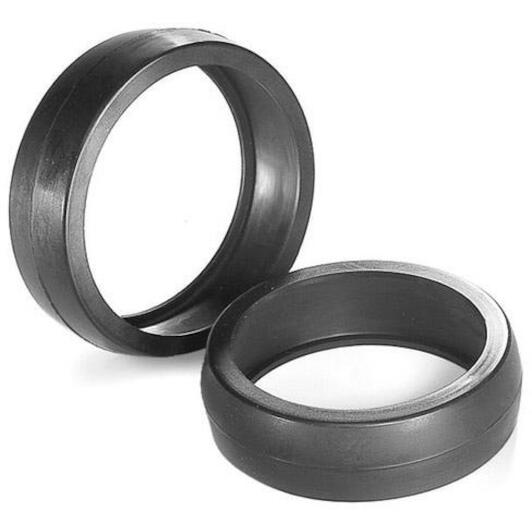

SKF RIS 204 rubber seat ring for insert bearing 52.3 x 41.2 x 19 mm

Supplier number: SKF RIS 204 | EAN 7316571100913

11.87 tax incl.

€9.81 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation using the Skf seating ring

Practical benefits

Reduced noise and vibration: You significantly dampen machine vibration and operating noise by cushioning the insert bearing inside the housing bore.
Accommodation of minor misalignment: You prevent premature wear because the flexible rubber body allows the bearing to absorb shaft expansion and slight angular errors.
Accurate dimensions for mounting: Measuring 52,3 x 41,2 x 19 mm, it gives you a precise fit when securing insert bearings into pressed steel housings.

In a nutshell

The right choise for

With the Skf ris 204 rubber seating ring, you achieve smooth and quiet operation for insert bearings in pressed steel housings. Positioned between the bearing and the housing bore, this rubber ring effectively dampens machine vibrations and reduces operating noise. Its flexible design easily accommodates minor shaft expansion and angular misalignment, protecting your assembly from premature wear. Sized accurately at 52.3 x 41.2 x 19 mm, it delivers a precise and secure fit for mechanical drives, conveyor systems, and ventilation equipment.

Product information FAQ

€11.87

In stock - tax incl.

Key features according to our expert

Inner diameter: 41,2 mm
Outer diameter: 52,3 mm
Width: 19 mm

Product description

Rubber seating rings in the RIS 2 series are primarily intended to cushion insert bearings in pressed steel pillow (plummer) block housings. Located between the bearing outer ring and housing bore, they dampen vibration and noise and enable the bearings to be displaced slightly in their housings and to accommodate minor shaft expansion or misalignment.

Cushion the insert bearing
Dampen vibrations and noise
Accommodate slight misalignment

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 41,2 mm
Outer diameter: 52,3 mm
Width: 19 mm
Outer diameter: 52.3
Material: Rubber
Bore diameter: 41.2
Accessory type: Rubber seating ring

Brand SKF
01194266
EAN 7316571100913
Supplier number SKF RIS 204

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of the SKF RIS 204 rubber seating ring?: The ring has an outer diameter of 52.3 mm, an inner diameter of 41.2 mm, and a width of 19 mm.
What is the primary function of this rubber seating ring?: It cushions the insert bearing, dampens vibrations and noise, and accommodates slight shaft misalignment or expansion.
Which bearing housing types is the SKF RIS 204 designed for?: It is primarily intended for use in SKF pressed steel pillow block and flanged housings.
What material is the seating ring made of?: The seating ring is made of rubber.
