Product description:
- Support roller with seals

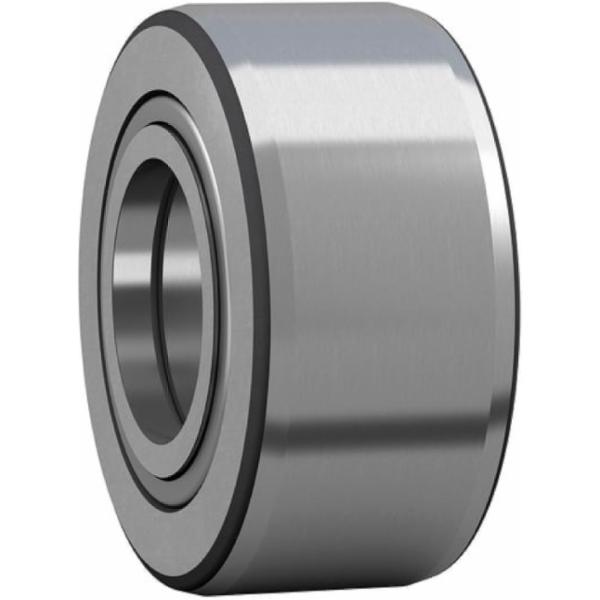

SKF PWTR 45100.2RS support roller with inner ring and flange seal (Yoke type track roller) 100 x 45 x 32 mm
Key features according to our expert
- Inner diameter: 45 mm
- Width: 32 mm
- Outer diameter: 100 mm
Specifications / All features
- Brand: SKF
- EAN: 7316571208879
- Supplier number: SKF PWTR 45100.2RS
- Inner diameter
- 45 mm
- Width
- 32 mm
- Outer diameter
- 100 mm
- Axial guidance of outer ring
- Yes
- Functional outside diameter
- 100 mm
- Material, bearing
- Bearing steel
- Cage
- Without
- Sealing type
- Contact
- Width, outer ring
- 30 mm
- Lubricant
- Grease
- Relubrication feature
- With
- Basic static load rating
- 69.5 kN
- Radial internal clearance
- Between C2 and CN
- Tolerance class
- Other
- Bearing part
- Complete track roller
- Number of flanges, outer ring
- 3
- Sealing
- Seal on both sides
- Width, total
- 32 mm
- Outer ring profile
- Crowned
- Limiting speed
- 1,700 r/min
- Bore diameter
- 45 mm
- Number of rows
- 2
- Basic dynamic load rating
- 53.9 kN
- Coating
- Without
- Rolling elements
- Cylindrical rollers
