SKF

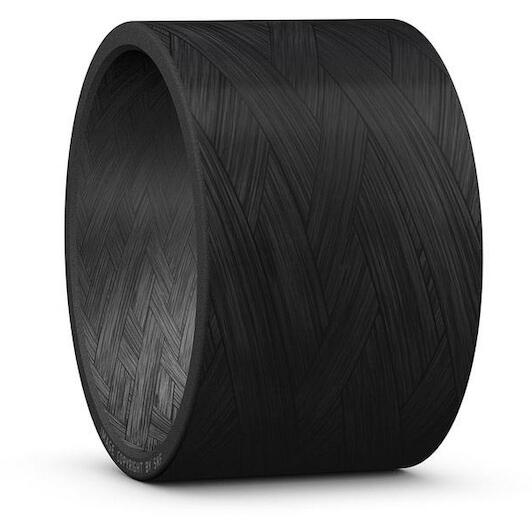

SKF PWM 100115120 straight wound plain bearing bush 100 x 115 x 120 mm

Recommended Retail Price €916.35
453.60 tax incl.
€374.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

SKF filament wound straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. The composite material is specially developed to accommodate heavy loads, impact loads and vibrations. The bushings are also less sensitive to misalignment and have excellent dry sliding characteristics.

  • Maintenance-free operation
  • Very good frictional properties
  • High load carrying capacity
  • Excellent corrosion resistance
  • Electrically insulating
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 120 mm
  • With collar: No
  • Material (plain bearing bush): Glass fibre and PTFE
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571029153
  • Supplier number: SKF PWM 100115120
Inner diameter
100 mm
Width
120 mm
With collar
No
Material (plain bearing bush)
Glass fibre and PTFE
Outer diameter
115 mm
Material
Filament wound
Relubrication feature
Without
Basic static load rating
2360
Bore diameter
100
Basic dynamic load rating
1660
Outside diameter
115
Design
Straight
