What are the dimensions of this flanged bushing?

It has an inside diameter of 30 mm, an outside diameter of 34 mm, a width of 16 mm, and a flange diameter of 42 mm.

What loads can this bushing accommodate?

The SKF PCMF 303416 E accommodates radial loads as well as axial loads in one direction via its flange.

Does this plain bearing require lubrication?

No, the PTFE composite lining provides self-lubricating, maintenance-free operation with low friction.

What types of movement is this bushing suitable for?

It is suitable for rotating, oscillating, and linear movements in compact designs.

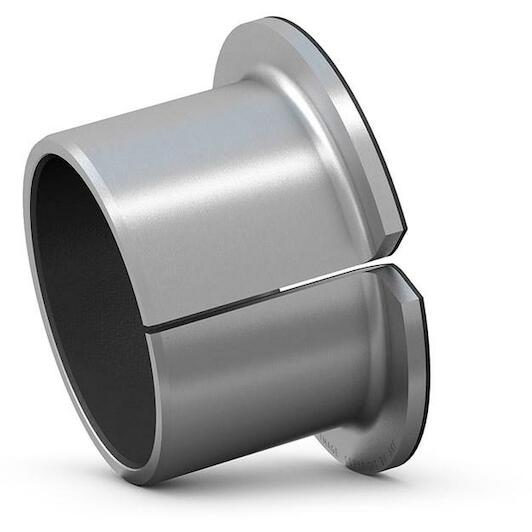

SKF PCMF 303416 E plain bearing bush PTFE composite with flange 30 x 42 x 16 mm

Supplier number: SKF PCMF 303416 E | EAN 7316572038093

9.04 tax incl.

€7.47 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation without lubrication

Practical benefits

Genuine Skf flanged design: The integrated flange allows you to accommodate combined radial and single-direction axial loads in compact spaces.
Maintenance-free composite liner: The self-lubricating PTFE composite layer ensures low friction and reliable operation without the need for periodic greasing.
Efficient heat dissipation: Thin-walled construction dissipates friction heat quickly, giving you smooth performance at higher sliding velocities.

In a nutshell

The right choise for

With the Skf pcmf 303416 e flanged bushing, you achieve reliable, maintenance-free operation in compact mechanical assemblies. Thanks to the self-lubricating ptfe composite lining, this bushing operates with low friction and eliminates the need for periodic greasing. The integrated flange effectively accommodates combined radial loads and single-direction axial thrust in one space-saving component. Its thin-walled steel-backed design delivers efficient heat dissipation during rotating, oscillating, and linear movements. Sized at 30 x 34 x 16 mm with a 42 mm flange diameter, it protects shafts from premature wear.

Product information FAQ

€9.04

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
With collar: Yes
Material (plain bearing bush): PTFE composite
Outer diameter: 34 mm

Product description

SKF PTFE composite flanged bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads as well as axial loads in one direction. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity and small operating clearance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
With collar: Yes
Material (plain bearing bush): PTFE composite
Outer diameter: 34 mm

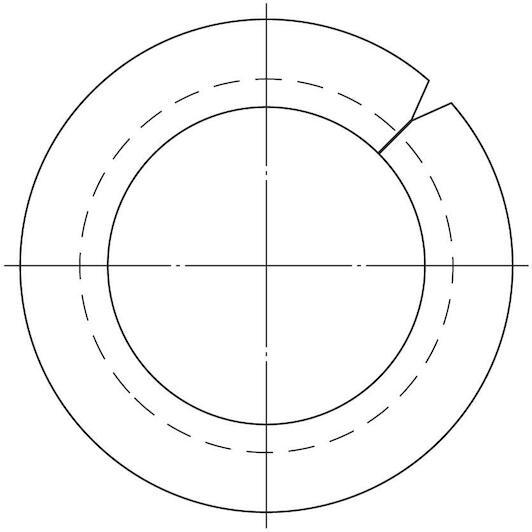

Flange diameter: 42
Design: Flanged
Relubrication feature: Without
Basic dynamic load rating, axial direction: 29
Basic static load rating, radial direction: 95
Basic dynamic load rating, radial direction: 30.5
Basic static load rating, axial direction: 91.5
Bore diameter: 30
Material: PTFE composite
Outer diameter: 34
Flange thickness: 2

Brand SKF
01332222
EAN 7316572038093
Supplier number SKF PCMF 303416 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this flanged bushing?: It has an inside diameter of 30 mm, an outside diameter of 34 mm, a width of 16 mm, and a flange diameter of 42 mm.
What loads can this bushing accommodate?: The SKF PCMF 303416 E accommodates radial loads as well as axial loads in one direction via its flange.
Does this plain bearing require lubrication?: No, the PTFE composite lining provides self-lubricating, maintenance-free operation with low friction.
What types of movement is this bushing suitable for?: It is suitable for rotating, oscillating, and linear movements in compact designs.
