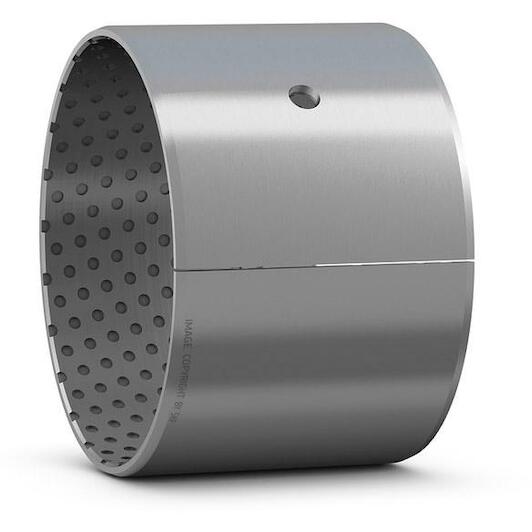

SKF PCM 222520 M sleeve bearing POM composite 22 x 25 x 20 mm

Supplier number: SKF PCM 222520 M | EAN 7316571347387
7.34 tax incl.
€6.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

The minimum purchase order quantity for the product is 25.

  • Delivery by DHL


€7.34
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 22 mm
  • Width: 20 mm
  • With collar: No
  • Material (plain bearing bush): POM composite
  • Outer diameter: 25 mm

Product description

  • SKF POM composite straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. After initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably. Despite their compact design, they can accommodate heavy loads.

Avantages

  • Cost-effective with long service life
  • Very good frictional properties
  • High load carrying capacity
  • High sliding velocity

Documents

All Features

Inner diameter
22 mm
Width
20 mm
With collar
No
Material (plain bearing bush)
POM composite
Outer diameter
25 mm
Material
POM composite
Relubrication feature
With
Basic static load rating
106 kN
Bore diameter
22 mm
Basic dynamic load rating
51 kN
Outer diameter
25 mm
Design
Straight
  • Brand SKF
  • EAN 7316571347387
  • Supplier number SKF PCM 222520 M
