SKF

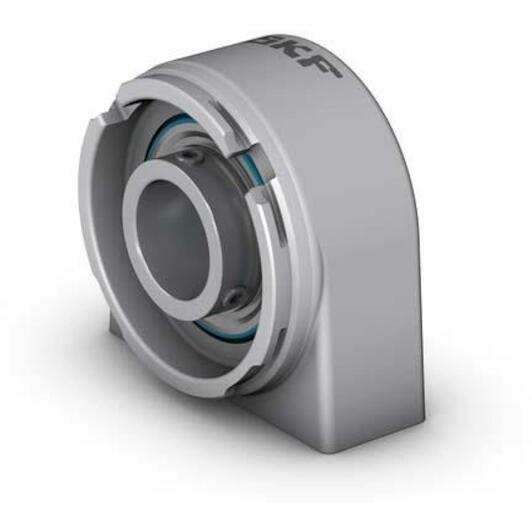

SKF P2BTSS 30M-TPSS upright ball bearing unit with short base, widened inner ring and locking with set screw, stainless steel

Recommended Retail Price €652.18
322.80 tax incl.
€266.78 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a stainless steel housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Good corrosion resistance
Key features according to our expert
  • Shaft diameter: 30 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Stainless steel
  • Split: No
  • Material (bearing): Stainless steel
Specifications / All features
  • Brand: SKF
  • EAN: 07316581138357
  • Supplier number: SKF P2BTSS 30M-TPSS
Shaft diameter
30 mm
Bore type
Cylindrical
Material (bearing housing)
Stainless steel
Split
No
Material (bearing)
Stainless steel
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, gutter
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Stainless steel
Application
For food and beverage applications
Housing type
Pillow block
Number of bolt holes for fasteners
2
Hexagonal key size for set screw
3
Centre height (pillow block)
42.9
Grease fitting
Without
Material, housing
Stainless steel
Set screw
M6x0.75
Note
Limiting speed with shaft tolerance h6
Retaining feature, inner ring
Set screws
Basic static load rating
11.2
Basic dynamic load rating
16.3
Coating
Without
Housing overall width
28
Bearing width, total
38.1
Relubrication hole
Without
Fastening bolt hole type
Threaded
Limiting speed
3800
Sealing, unit
Optional end cover
Centre distance between bolt holes
76.2
Attachment thread diameter
M10
