What shaft diameter is this bearing unit suitable for?

This bearing unit is designed for a shaft diameter of 35 mm.

What materials are used for the housing and bearing insert?

The housing is made of composite material and the insert bearing is made of stainless steel.

What is the purpose of the SKF Blue Line series?

It is engineered for food and beverage applications requiring high hygiene standards and corrosion resistance.

How is the bearing secured to the shaft?

The inner ring is secured to the shaft using set screws.

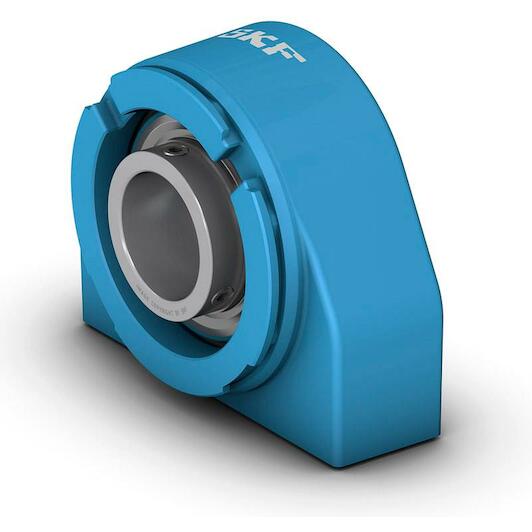

SKF P2BTC 35M-TPSS ball bearing unit 35 mm

Supplier number: SKF P2BTC 35M-TPSS | EAN 7316577856586

Recommended Retail Price €554.54

274.40 tax incl.

€226.78 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Hygienic performance with Skf bearing

Practical benefits

Excellent resistance to corrosion: The stainless steel insert and composite housing keep your machinery protected against moisture and frequent washdown routines.
Quick and secure mounting: You can easily lock the unit onto a 35 mm shaft using the convenient set screw mechanism.
Lightweight yet robust design: The durable composite construction provides reliable operation under both constant and alternating directions of rotation.

In a nutshell

The right choise for

With the Skf Blue Line P2BTC 35m-TPSS bearing unit, you keep your conveyor and processing equipment running smoothly under demanding washdown conditions. Engineered with a stainless steel insert bearing and a durable composite housing, it delivers outstanding resistance to corrosion, moisture, and chemical cleaning agents. You can quickly and securely lock the unit onto a 35 mm shaft using the set screw mechanism on the inner ring. Its lightweight, hygienic construction minimizes contamination risks while ensuring reliable, long-lasting operation in both constant and alternating directions of rotation.

Product information FAQ

€274.40

In stock - tax incl.

Key features according to our expert

Shaft diameter: 35 mm
Product line: Blue Line
Material (bearing housing): Composite
Bore type: Cylindrical
Material (bearing): Stainless steel

Product description

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 35 mm
Product line: Blue Line
Material (bearing housing): Composite
Bore type: Cylindrical
Material (bearing): Stainless steel
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, gutter
Sealing, bearing: Seal and flinger on both sides
Material, bearing: Stainless steel
Application: For food and beverage applications
Housing type: Pillow block
Number of bolt holes for fasteners: 2
Hexagonal key size for set screw: 3
Centre height (pillow block): 47.6
Grease fitting: Without
Material, housing: Composite for the SKF Food Line
Set screw: M6x0.75
Note: Limiting speed with shaft tolerance h6
Retaining feature, inner ring: Set screws
Basic static load rating: 15.3
Basic dynamic load rating: 21.6
Coating: Without
Housing overall width: 30
Bearing width, total: 42.9
Relubrication hole: Without
Fastening bolt hole type: Threaded
Limiting speed: 3200
Sealing, unit: Optional end cover
Centre distance between bolt holes: 82.5
Attachment thread diameter: M10

Brand SKF
02942911
EAN 7316577856586
Supplier number SKF P2BTC 35M-TPSS

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this bearing unit suitable for?: This bearing unit is designed for a shaft diameter of 35 mm.
What materials are used for the housing and bearing insert?: The housing is made of composite material and the insert bearing is made of stainless steel.
What is the purpose of the SKF Blue Line series?: It is engineered for food and beverage applications requiring high hygiene standards and corrosion resistance.
How is the bearing secured to the shaft?: The inner ring is secured to the shaft using set screws.
