skf_p2bss30m_cpss_dfh
SKF

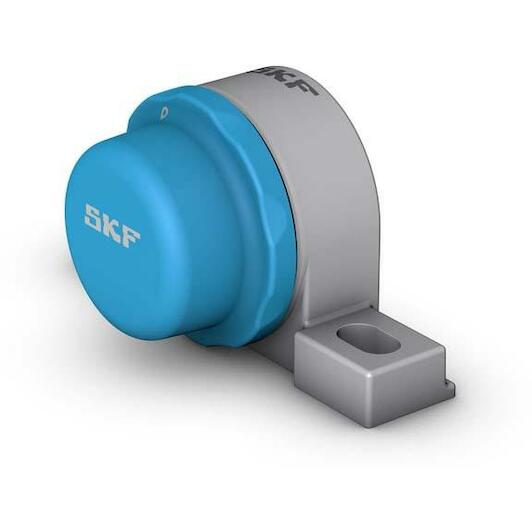

SKF P2BSS 30M-CPSS-DFH upright bearing unit with composite or cast metal bearing housing

Recommended Retail Price €646.01
319.80 tax incl.
€264.30 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Pillow (plummer) block bearing units consisting of an insert bearing mounted in a composite or cast metal housing that can be bolted to a support surface. In addition to being part of a unit, some pillow block housings for insert bearings are available as separate components. The SKF assortment includes units that are compliant with several industrial standards and meet many requirements.

  • Ready to mount
  • Lubricated and sealed bearings
  • Quick locking on the shaft
  • Large variety of housing shapes, housing materials, and locking methods
  • Concentric locking options for high speeds and low vibration
Key features according to our expert
  • Shaft diameter: 30 mm
  • Material (bearing): Stainless steel
  • Split: No
  • Bore type: Cylindrical
  • Material (bearing housing): Stainless steel
Specifications / All features
  • Brand: SKF
  • EAN: 07316581143931
  • Supplier number: SKF P2BSS 30M-CPSS-DFH
Shaft diameter
30 mm
Material (bearing)
Stainless steel
Split
No
Bore type
Cylindrical
Material (bearing housing)
Stainless steel
Material, bearing
Stainless steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, gutter
Sealing, bearing
Seal on both sides and flinger on one side
Housing type
Pillow block
Bearing width, total
31.2
Application
For food and beverage applications
Hexagonal key size for set screw
3
Centre height (pillow block)
42.9
Grease fitting
Without
Material, housing
Stainless steel
Basic static load rating
11.2
Attachment bolt diameter
12
Retaining feature, inner ring
Set screws
Centre distance between bolt holes
117.5
Sealing, unit
End cover and back seal
Limiting speed
700
Fastening bolt hole type
Plain
Relubrication hole
Without
Housing overall width
34
Basic dynamic load rating
16.3
Coating
Without
Set screw
M6x0.75
