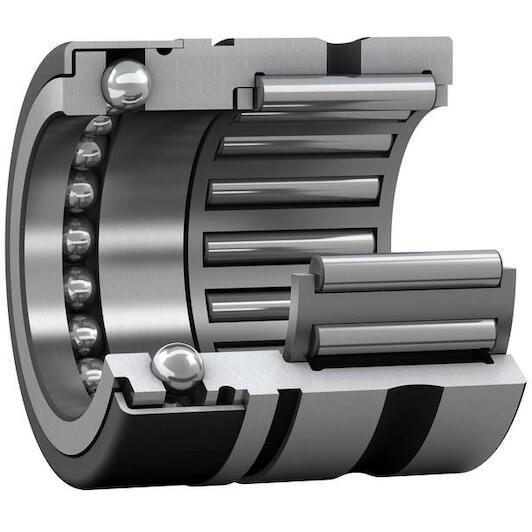

- What types of loads can this combined bearing support?
- It supports radial loads and light axial loads acting in a single direction simultaneously.

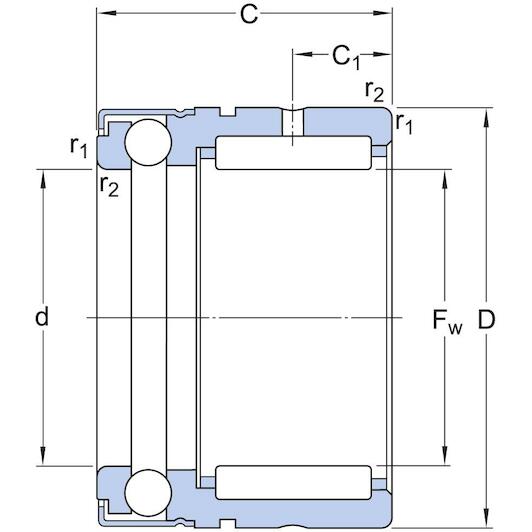

- What are the exact dimensions of the SKF NX 20 Z?
- It has an inside diameter of 20 mm, an outside diameter of 30 mm, and a width of 28 mm.
- What does the Z suffix indicate on this model?
- The Z designation indicates a stamped steel cover over the thrust bearing section to retain grease.
- Does this needle roller bearing include an inner ring?
- No, the radial needle roller section is supplied without an inner ring to run directly on a hardened shaft.
- Is the SKF NX 20 Z separable?
- No, this bearing features a non-separable design where all parts form a single integrated unit.
