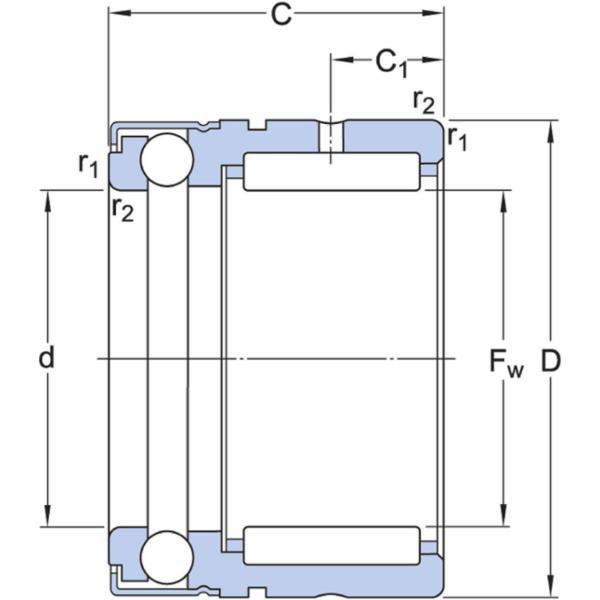

SKF NX 10 Z combined needle roller/ball thrust bearing single acting 10x19x18 mm

Supplier number: SKF NX 10 Z | EAN 7316570837858
Recommended Retail Price €111.83
55.20 tax incl.
€45.62 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/12/2026

  • Delivery by DHL


€55.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 10 mm
  • Outer diameter: 19 mm
  • Width: 18 mm

Product description

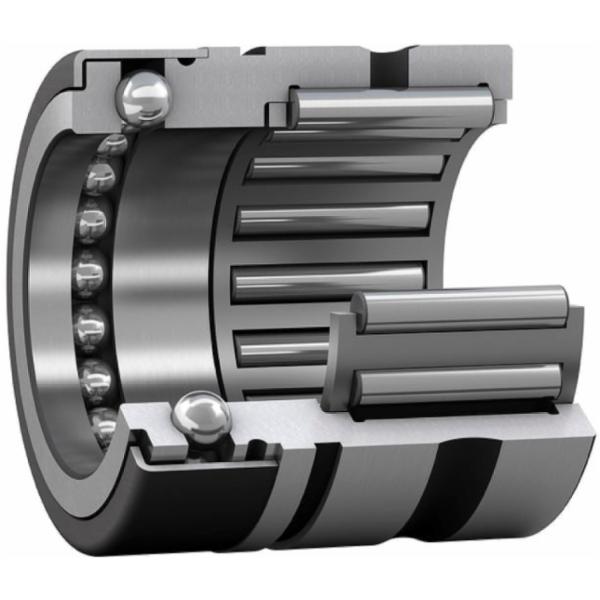

  • These bearings consist of a radial needle roller bearing combined with a full complement thrust ball bearing. Together they can accommodate both moderate radial loads and lighter axial loads in one direction. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Avantages

  • Accommodate radial and axial loads in one direction
  • High load carrying capacity
  • Low cross section
  • Non-separable design

Documents

All Features

Inner diameter
10 mm
Outer diameter
19 mm
Width
18 mm
Material, bearing
Bearing steel
Thrust part
Without cage
Reference speed
8500 r/min
Tolerance class
Other
Bearing part
Radial part without inner ring
Rolling element (thrust part)
Balls
Lubricant (thrust part)
Grease
Special feature
Thrust part with stamped steel cover without lubrication holes
Limiting speed
5600 r/min
Bore diameter
10 mm
Axial load capability
Single-direction
Radial part
With cage
Coating
Without
Outside diameter
19 mm
Rolling bearing type
Needle roller / full complement thrust ball bearing
  • Brand SKF
  • EAN 7316570837858
  • Supplier number SKF NX 10 Z
