SKF NKX 45 combined needle roller/ball thrust bearing with cage, single-sided acting 45x58x32 mm

Supplier number: SKF NKX 45 | EAN 7316577106032
Recommended Retail Price €365.42
180.80 tax incl.
€149.42 excl. VAT (incl. all environmental contributions)
On order: delivered from 05/12/2026

  • Delivery by DHL


€180.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 45 mm
  • Width: 32 mm
  • Outer diameter: 58 mm

Product description

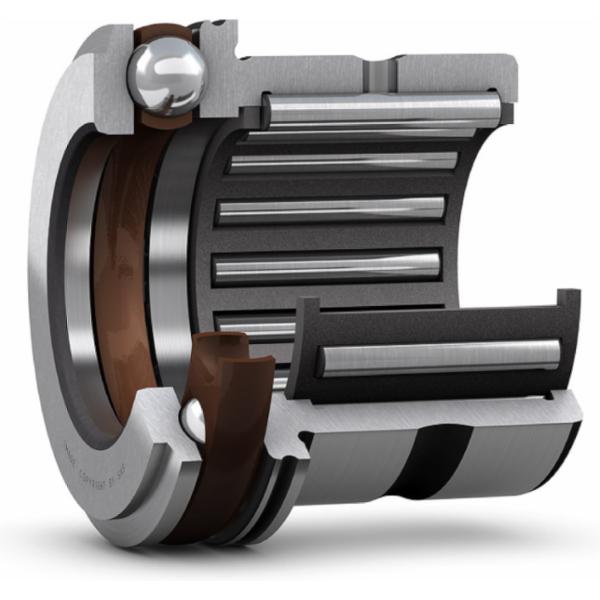

  • These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.

Avantages

  • Accommodate radial and axial loads in one direction
  • High load carrying capacity
  • Relatively high-speed capability
  • Low cross section
  • Separable design

Documents

All Features

Inner diameter
45 mm
Width
32 mm
Outer diameter
58 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Thrust part
With cage
Reference speed
4500 r/min
Tolerance class
Other
Bearing part
Radial part without inner ring
Rolling element (thrust part)
Balls
Lubricant (thrust part)
None
Limiting speed
6300 r/min
Radial part
With cage
Bore diameter
45 mm
Coating
Without
Outside diameter
58 mm
Rolling bearing type
Needle roller / thrust ball bearing
  • Brand SKF
  • EAN 7316577106032
  • Supplier number SKF NKX 45
