What types of loads can this SKF bearing support?

It combines a radial needle roller bearing with a thrust ball bearing to handle radial and single-direction axial loads.

What are the dimensions of the SKF NKX 12 Z bearing?

This bearing features an inside diameter of 12 mm, an outside diameter of 21 mm, and a total width of 23 mm.

What purpose does the Z suffix cover serve?

The cover forms a gap-type seal over the thrust section to effectively retain lubricating grease inside.

Can this bearing be separated during installation?

No, it features a non-separable design and installs as a single, compact unit.

When should you select this combined bearing?

It is ideal for compact bearing arrangements with limited radial space where both radial and axial forces occur.

SKF NKX 12 Z combined needle roller/ball thrust bearing with cage, single-sided acting 12x21x23 mm

Supplier number: SKF NKX 12 Z | EAN 7316577661203

Recommended Retail Price €140.84

69.40 tax incl.

€57.36 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact load capacity with Skf NKX 12 Z

Practical benefits

Combined radial and axial support: You support both radial and single-direction axial forces simultaneously within a single compact bearing unit.
Minimal space requirements in housings: The low cross-sectional height lets you integrate dependable bearing arrangements into applications with limited space.
Retained lubrication with protective cover: The integrated steel cover retains grease effectively to protect your installation from premature wear during operation.

In a nutshell

The right choise for

With the Skf nkx 12 z combined needle roller and thrust ball bearing, you easily overcome space restrictions in tight machine housings. This bearing pairs a radial needle roller bearing with a thrust ball bearing to support both radial loads and single-direction axial forces at the same time. Featuring compact dimensions of 12X21X23 mm and a low cross-sectional height, it fits smoothly into drive shafts, gearboxes, and pneumatic tools. The integrated steel cover effectively retains lubricating grease and protects against dirt, ensuring dependable, low-maintenance performance across your mechanical installations.

Product information FAQ

€69.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Outer diameter: 21 mm
Width: 23 mm

Product description

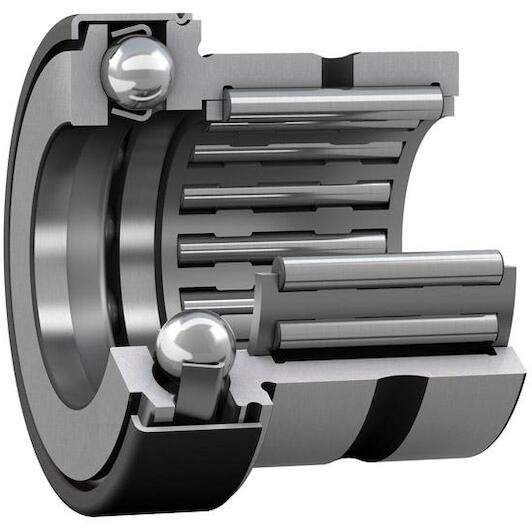

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Accommodate radial and axial loads in one direction
High load carrying capacity
Relatively high-speed capability
Low cross section
Non-separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Outer diameter: 21 mm
Width: 23 mm
Material, bearing: Bearing steel
Thrust part: With cage
Reference speed: 9000
Tolerance class: Other
Bearing part: Radial part without inner ring
Rolling element (thrust part): Balls
Lubricant (thrust part): Grease
Special feature: Thrust part with stamped steel cover without lubrication holes
Limiting speed: 7500
Bore diameter: 12
Axial load capability: Single-direction
Radial part: With cage
Coating: Without
Outer diameter: 21
Rolling bearing type: Needle roller / thrust ball bearing

Brand SKF
01290375
EAN 7316577661203
Supplier number SKF NKX 12 Z

Frequently asked questions about this product

Answered by specialists

What types of loads can this SKF bearing support?: It combines a radial needle roller bearing with a thrust ball bearing to handle radial and single-direction axial loads.
What are the dimensions of the SKF NKX 12 Z bearing?: This bearing features an inside diameter of 12 mm, an outside diameter of 21 mm, and a total width of 23 mm.
What purpose does the Z suffix cover serve?: The cover forms a gap-type seal over the thrust section to effectively retain lubricating grease inside.
Can this bearing be separated during installation?: No, it features a non-separable design and installs as a single, compact unit.
When should you select this combined bearing?: It is ideal for compact bearing arrangements with limited radial space where both radial and axial forces occur.
