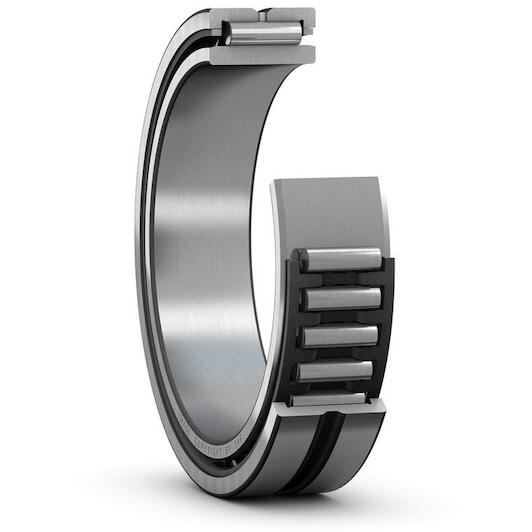

Product description Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication. Avantages High radial load carrying capacity High stiffness Low cross-sectional height Accommodate axial displacement in both directions Separable design
Key features according to our expert
Inner diameter: 40 mm
Width: 30 mm
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Plastic
Outer diameter: 55 mm
Specifications / All features
Brand:
SKF
01290057
EAN:
7316573415916
Supplier number:
SKF NKI 40/30 TN
Inner diameter
40 mm
Width
30 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
55 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Lubricant
None
Basic static load rating
108 kN
Relubrication feature
With
Reference speed
9,000 r/min
Number of flanges, outer ring
2
Seal type
Not applicable
Cage
Non-metallic
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
10,000 r/min
Bore diameter
40 mm
Basic dynamic load rating
45.7 kN
Coating
Without
Outside diameter
55 mm
Material, bearing
Bearing steel
