SKF

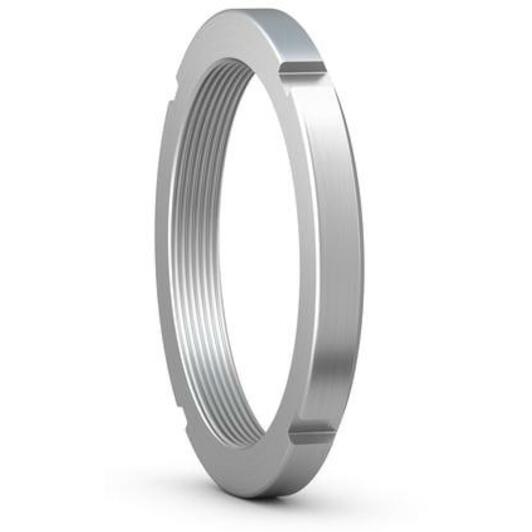

SKF N 13 locking nut with inch thread, for locking with washer or washer plate 64.7192 mm

Recommended Retail Price €57.21
28.20 tax incl.
€23.31 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Delivery by DHL

Product description

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve
Key features according to our expert
  • Outer diameter: 85,852 mm
  • Width: 14,554 mm
  • Thread dimension: 2,548-18
Specifications / All features
  • Brand: SKF
  • EAN: 7316571385488
  • Supplier number: SKF N 13
Outer diameter
85,852 mm
Width
14,554 mm
Thread dimension
2,548-18
Outside diameter
85.852
Bore diameter
64.7192
Associated mounting tool
HN 12-13
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
2.548-18
