SKF

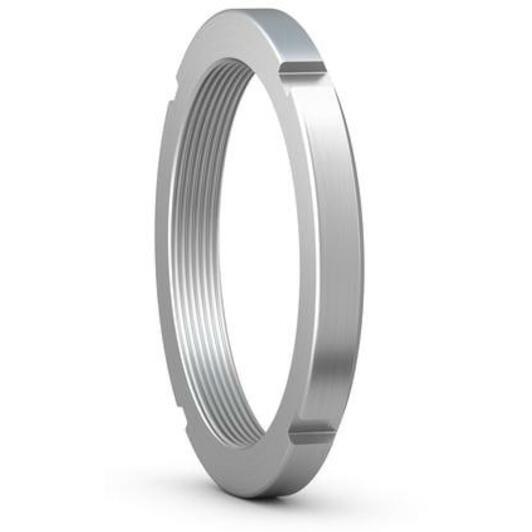

SKF N 12 locknut with inch thread, for locking with washer or locking plate 59.944 mm

Recommended Retail Price €49.37
24.40 tax incl.
€20.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 5.

  • Delivery by DHL

Product description

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve
Key features according to our expert
  • Outer diameter: 80,289 mm
  • Width: 13,741 mm
  • Thread dimension: 2,36-18
Specifications / All features
  • Brand: SKF
  • EAN: 7316570571882
  • Supplier number: SKF N 12
Outer diameter
80,289 mm
Width
13,741 mm
Thread dimension
2,36-18
Outside diameter
80.2894
Bore diameter
59.944
Associated mounting tool
HN 12-13
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
2.36-18
