SKF

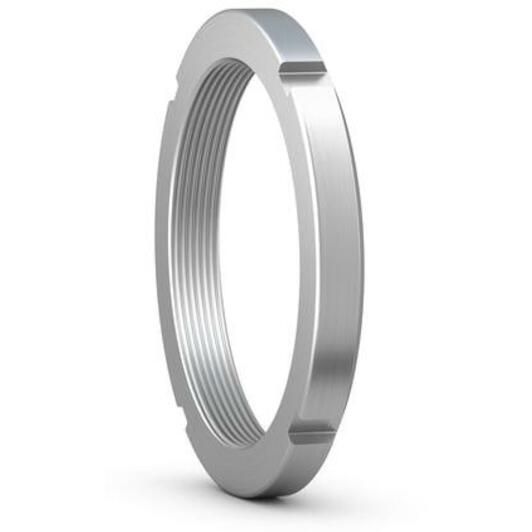

SKF N 09 locknut with inch thread, for locking with washer or washer plate 44.8818 mm

Recommended Retail Price €28.83
14.20 tax incl.
€11.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 5.

  • Delivery by DHL

Product description

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve
Key features according to our expert
  • Outer diameter: 64,414 mm
  • Width: 11,379 mm
  • Thread dimension: 1,767-18
Specifications / All features
  • Brand: SKF
  • EAN: 7316571159027
  • Supplier number: SKF N 09

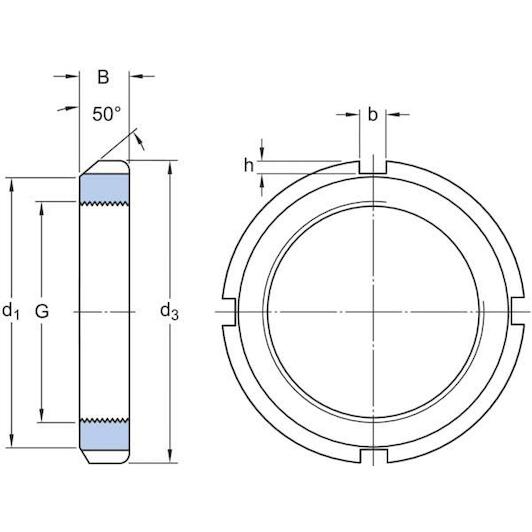

Outer diameter
64,414 mm
Width
11,379 mm
Thread dimension
1,767-18
Outside diameter
64.4144
Bore diameter
44.8818
Associated mounting tool
HN 8-9
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
1.767-18
