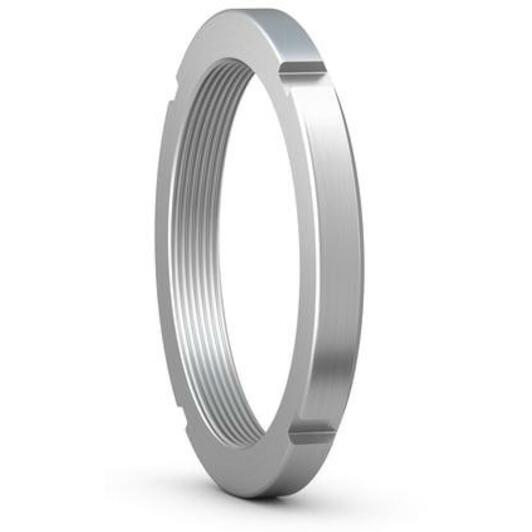

SKF N 07 locknut with inch thread, for locking with washer or locking plate 34.9504 mm

SKF
Supplier number: SKF N 07 | EAN 7316570596717
Recommended Retail Price €26.00
12.80 tax incl.
€10.58 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

The minimum purchase order quantity for the product is 5.

  • Delivery by DHL
✆ Talk to a specialist


Product information
€12.80
tax incl.

Product information

Key features according to our expert

  • Outer diameter: 52,527 mm
  • Width: 11,379 mm
  • Thread designation: 1,376-18

Product description

N lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer or locking plate to prevent unintentional loosening. N lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adapter sleeve

All Features

Outer diameter
52,527 mm
Width
11,379 mm
Thread designation
1,376-18
Outer diameter
52.5272
Bore diameter
34.9504
Associated mounting tool
HN 7
Nut for hydraulic mounting
No
Locking device
Lock washer
  • Brand SKF
  • EAN 7316570596717
  • Supplier number SKF N 07
