SKF MB 36 lock washer for lock nuts 180 x 242 mm

Supplier number: SKF MB 36 | EAN 7316577011763

Recommended Retail Price €103.76

51.20 tax incl.

€42.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft locking with MB 36

Practical benefits

Prevents unintentional loosening: The robust tabs bend into the lock nut slots to ensure your mechanical assembly stays secure during operation.
Fast and simple installation: You easily engage the inner tab into the shaft keyway and bend an outer tab to finish locking.

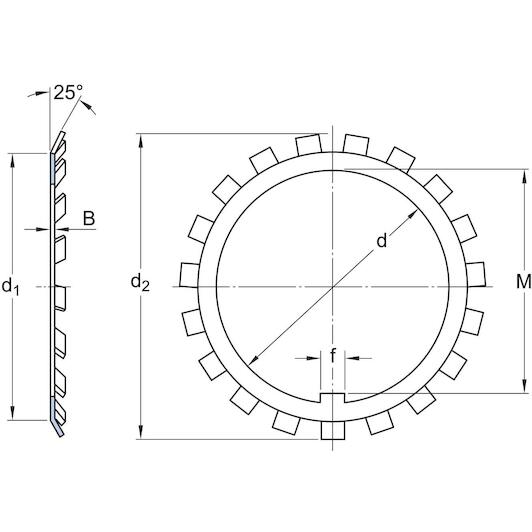

Precise standard dimensions: Designed with a 180 mm bore diameter and a 242 mm outside diameter, it fits your shaft components seamlessly.

In a nutshell

The right choise for

With the Skf mb 36 lock washer, you reliably secure metric km 36 lock nuts onto shafts and adapter sleeves. Its robust tabs prevent bearing assemblies from backing off under heavy vibration and dynamic rotational forces. Installation is fast and simple: slide the inner tab into the shaft keyway and bend one of the outer tabs into a slot on the lock nut. Featuring a 180 mm bore diameter and a 242 mm outside diameter, it delivers a precise fit to maintain accurate axial positioning and bearing preload in demanding machinery.

Product information FAQ

€51.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 180 mm
Outer diameter: 242 mm

Product description

MB and MBL lock washers are locking devices, used to secure KM, KML and HM .. T lock nuts onto a shaft or adapter sleeve and prevent unintentional loosening. MB .. A is a stronger version of the MB washer. The lock washers engage a keyway in the shaft or adapter sleeve thread. They lock the nut in position when one of the washer tabs is bent into one of the slots in the outside diameter of the lock nut. A new lock washer should be used each time the corresponding lock nut is installed.

Simple, stable and reliable fastening element
Easy to install and remove
Used for KM, KML, and HM .. T lock nuts

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 180 mm
Outer diameter: 242 mm
Outside diameter: 242
Bore diameter: 180
Locking device: Lock washer

Brand SKF
01230659
EAN 7316577011763
Supplier number SKF MB 36

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF lock washer?: The MB 36 lock washer has an inside diameter of 180 mm, an outside diameter of 242 mm, and a thickness of 2.5 mm.
What is the SKF MB 36 lock washer used for?: It is used to secure metric KM 36 lock nuts onto a shaft or adapter sleeve, preventing unintentional loosening.
How does this lock washer secure the nut?: The inner tab engages the shaft keyway, and you bend one of the outer tabs into a slot on the lock nut.
Can you reuse an SKF MB lock washer?: No, a new lock washer must be used each time the corresponding lock nut is installed to ensure reliable locking.
