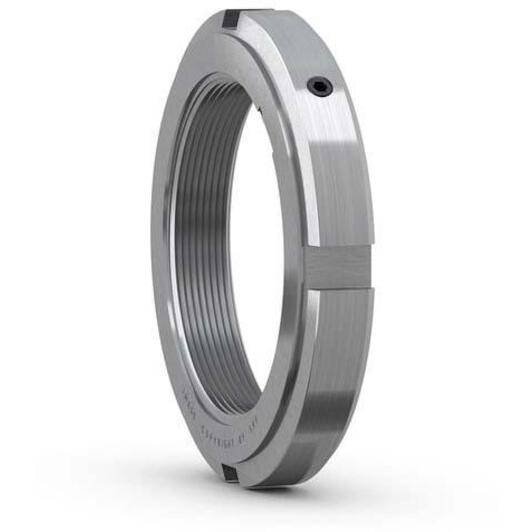

SKF KMFE 10 locknut with metric trapezoidal thread and locking screw 50 mm

SKF
Supplier number: SKF KMFE 10 | EAN 7316571585116
Recommended Retail Price €68.76
33.95 tax incl.
€28.06 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

The minimum purchase order quantity for the product is 5.

  • Delivery by DHL
✆ Talk to a specialist


Product information
€33.95
tax incl.

Product information

Key features according to our expert

  • Outer diameter: 70 mm
  • Width: 14 mm
  • Thread designation: M50 x 1,5

Product description

KMFE lock nuts with integral locking screw are designed to locate CARB toroidal roller bearings, sealed spherical roller bearings and sealed self-aligning ball bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. Maximum axial run-out locating face and thread 0.02 to 0.03 mm.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 20x1 to M 200x3 (sizes 4 to 40)

All Features

Outer diameter
70 mm
Width
14 mm
Thread designation
M50 x 1,5
Outer diameter
70
Bore diameter
50
Associated mounting tool
HN 10-11
Nut for hydraulic mounting
No
Locking device
Incorporated in the lock nut
  • Brand SKF
  • EAN 7316571585116
  • Supplier number SKF KMFE 10
