SKF

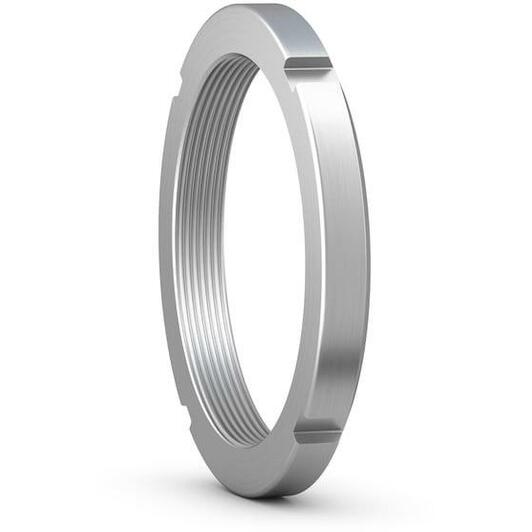

SKF KM 9 locknut 45 x 65 x 10 mm M45x1.5

13.50 tax incl.
€11.16 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Delivery by DHL

Product description

KM and KML lock nuts are used to locate bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. KM and KML lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new lock washer
  • Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40)
Key features according to our expert
  • Outer diameter: 65 mm
  • Width: 10 mm
  • Thread dimension: M45 x 1,5
Specifications / All features
  • Brand: SKF
  • EAN: 7316577758323
  • Supplier number: SKF KM 9

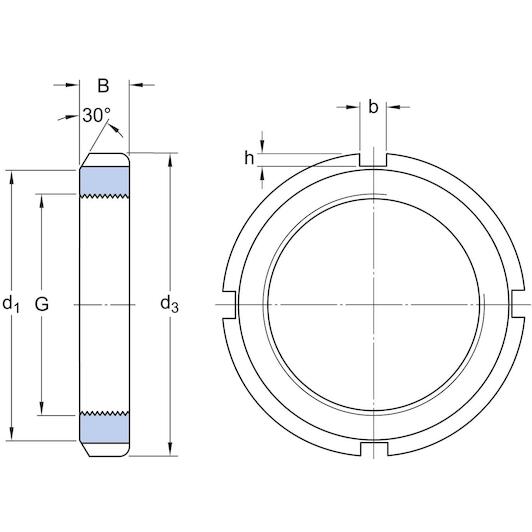

Outer diameter
65 mm
Width
10 mm
Thread dimension
M45 x 1,5
Outside diameter
65
Bore diameter
45
Associated mounting tool
HN 8-9
Nut for hydraulic mounting
No
Locking device
Lock washer
Thread designation
M45x1.5
