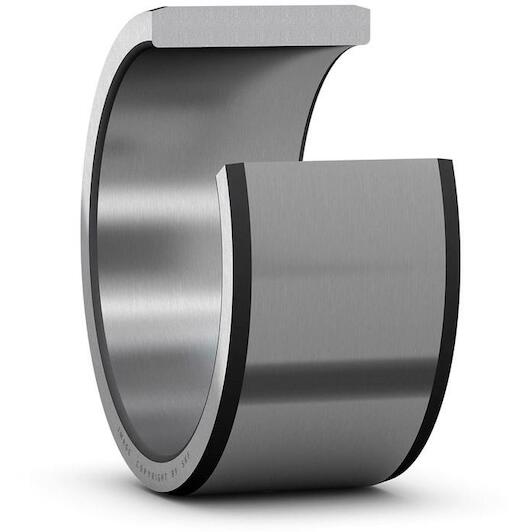

SKF IR 7X10X16 inner ring for needle roller bearing 7 x 10 x 16 mm

SKF
Supplier number: SKF IR 7X10X16 | EAN 7316570324525
Recommended Retail Price €22.34
10.95 tax incl.
€9.05 excl. VAT (incl. all environmental contributions)
On order: delivered from 05/10/2026

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€10.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 7 mm
  • Outer diameter: 10 mm
  • Width: 16 mm

Product description

  • Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings.

Avantages

  • Enable full interchangeability of inner rings
  • Standard SKF inner rings for needle roller bearings
  • Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
7 mm
Outer diameter
10 mm
Width
16 mm
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
10 mm
Bore diameter
7 mm
Coating
Without
Material
Bearing steel
Outside diameter
10 mm
Special raceway feature
None
  • Brand SKF
  • EAN 7316570324525
  • Supplier number SKF IR 7X10X16
