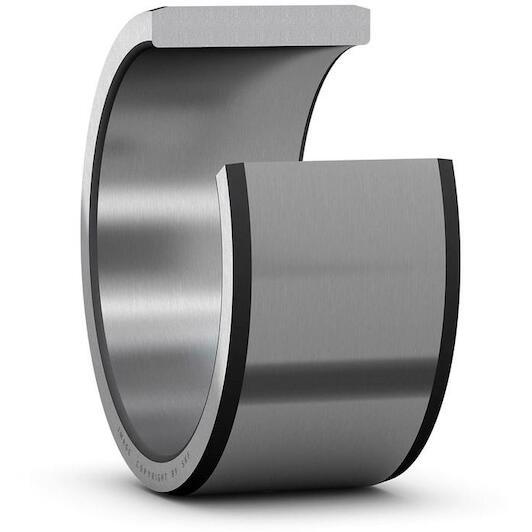

SKF IR 6X9X12 inner ring for needle roller bearing 6 x 9 x 12 mm

Supplier number: SKF IR 6X9X12 | EAN 7316570855302

9.97 tax incl.

€8.24 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

Ideal raceway for shafts: You create a precision ground raceway in applications where the shaft cannot be hardened.
Accommodates dual axial motion: You reliably support axial displacement in both directions during machine operation.
Fully interchangeable design: You ensure effortless component replacement and maintenance thanks to standardized manufacturing tolerances.

In a nutshell

The right choise for

With the Skf ir 6X9X12 inner ring, you easily provide a precision-ground raceway for needle roller bearings when the shaft cannot be hardened and ground. Made from high-quality bearing steel, it protects your shaft from direct roller contact and smoothly accommodates axial displacement in both directions. Thanks to its standardized tolerances and fully interchangeable design, you can install or replace the ring effortlessly during transmission overhauls or rotary machine maintenance. Measuring 6 mm inside diameter, 9 mm outside diameter, and 12 mm in width, it pairs seamlessly with suitable drawn cup bearings or needle roller assemblies for reliable, long-lasting operation.

Product information FAQ

€9.97

In stock - tax incl.

Key features according to our expert

Inner diameter: 6 mm
Outer diameter: 9 mm
Width: 12 mm

Product description

Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings.

Enable full interchangeability of inner rings
Standard SKF inner rings for needle roller bearings
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 6 mm
Outer diameter: 9 mm
Width: 12 mm
Relubrication feature: Without
Radial internal clearance: CN
Tolerance class: Normal
Raceway diameter: 9
Bore diameter: 6
Coating: Without
Material: Bearing steel
Outside diameter: 9
Special raceway feature: None

Brand SKF
01295549
EAN 7316570855302
Supplier number SKF IR 6X9X12

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this inner ring?: The inner ring has an inside diameter of 6 mm, an outside diameter of 9 mm, and a width of 12 mm.
What is an SKF IR series inner ring used for?: It provides a raceway for needle roller bearings when the shaft cannot be hardened and ground.
Which bearings can be combined with this inner ring?: It is designed for use with needle roller and cage assemblies or drawn cup bearings with a 9 mm raceway.
What material is this inner ring made of?: It is made of bearing steel and features a precision-ground raceway surface.
Does this inner ring accommodate axial displacement?: Yes, it accommodates axial displacement in both directions.
