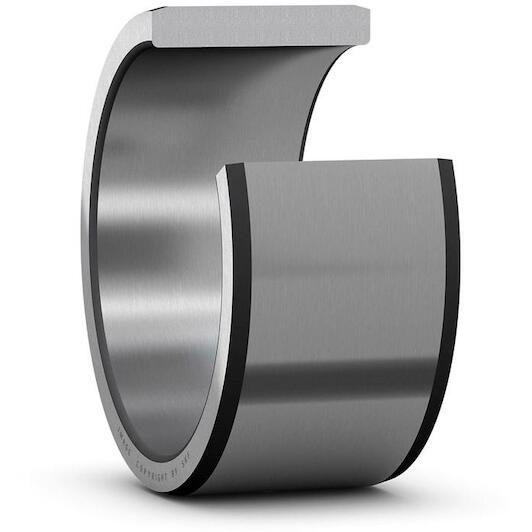

SKF IR 14X17X17 inner ring for needle roller bearing 14 x 17 x 17 mm

Supplier number: SKF IR 14X17X17 | EAN 7316570435320

Recommended Retail Price €22.64

10.95 tax incl.

€9.05 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable raceway performance with Skf

Practical benefits

Hardened precision raceway: You create a durable raceway on shafts that cannot be hardened or ground.
Smooth axial displacement: The finely ground surface easily accommodates axial movement in both directions during operation.
Fully interchangeable design: You can replace worn components quickly without fitting issues thanks to standardized dimensions.

In a nutshell

The right choise for

With the Skf ir 14X17X17 inner ring, you create a durable, precision raceway on shafts that cannot be hardened and ground. Measuring 14 x 17 x 17 mm, this hardened and precision-ground component prevents premature shaft wear while ensuring smooth rotational movement in needle roller bearing assemblies. The finely ground surface accommodates axial displacement in both directions during demanding operation. Thanks to its standardized dimensions, you can replace worn components quickly and keep your drive systems running reliably.

Product information FAQ

€10.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 14 mm
Outer diameter: 17 mm
Width: 17 mm

Product description

Inner rings for needle roller bearings are available as separate components. They are typically combined with needle roller and cage assemblies or drawn cup needle roller bearings in applications where the shaft cannot be hardened and ground. The inner rings in the IR series are the standard SKF inner rings for needle roller bearings.

Enable full interchangeability of inner rings
Standard SKF inner rings for needle roller bearings
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 14 mm
Outer diameter: 17 mm
Width: 17 mm
Relubrication feature: Without
Radial internal clearance: CN
Tolerance class: Normal
Raceway diameter: 17
Bore diameter: 14
Coating: Without
Material: Bearing steel
Outside diameter: 17
Special raceway feature: None

Brand SKF
01290735
EAN 7316570435320
Supplier number SKF IR 14X17X17

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this inner ring?: The inner ring has a 14 mm bore diameter, a 17 mm outside diameter, and a width of 17 mm.
What is the SKF IR 14X17X17 used for?: You use it as a raceway for needle roller bearings when the shaft cannot be hardened and ground.
Which bearing types can this ring be paired with?: It is typically paired with needle roller and cage assemblies or drawn cup needle roller bearings.
Does this inner ring accommodate axial displacement?: Yes, this inner ring accommodates axial displacement in both directions.
Is the inner ring hardened and ground?: Yes, SKF IR series inner rings are hardened and feature a precision ground raceway surface.
