SKF

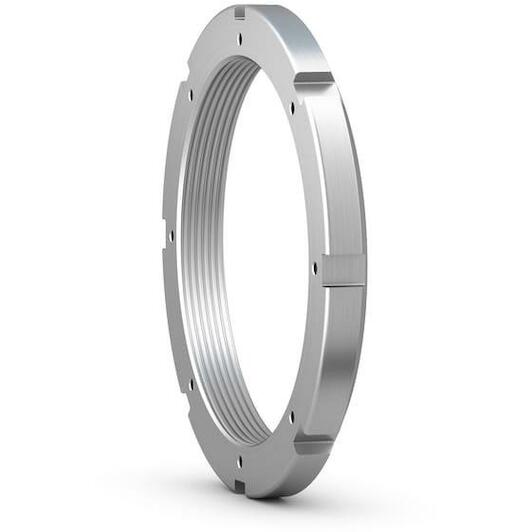

SKF HM 3060 locknut 300 x 360 x 42 mm Tr300x4

Recommended Retail Price €1,941.76
961.20 tax incl.
€794.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 15/07/2026
each

  • Delivery by DHL

Product description

HM lock nuts are used to locate bearings onto a shaft. They have metric trapezoidal threads and eight equally spaced slots located around their circumference to accommodate an impact spanner. They should be locked by a locking clip to prevent unintentional loosening. HM lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with new locking clip
  • Available for thread Tr 220x4 to Tr 1120x8 (sizes 44 to /1120)
Key features according to our expert
  • Outer diameter: 360 mm
  • Width: 42 mm
  • Thread designation: Tr300 x 4
Specifications / All features
  • Brand: SKF
  • EAN: 7316577114938
  • Supplier number: SKF HM 3060
Outer diameter
360 mm
Width
42 mm
Thread designation
Tr300 x 4
Outside diameter
360
Bore diameter
300
Associated mounting tool
TMFN 52-64
Nut for hydraulic mounting
No
Locking device
Locking clip
