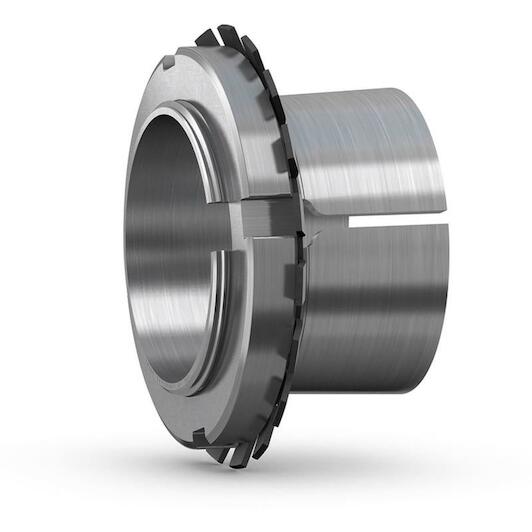

SKF HE 3126 Bushing for metric axles 114.3 x 92 mm M130x2

Recommended Retail Price €642.00
317.80 tax incl.
€262.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device
Key features according to our expert
  • Inner diameter: 114,3 mm
  • Width: 92 mm
  • Thread nominal size*: M130 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316577010148
  • Supplier number: SKF HE 3126
Inner diameter
114,3 mm
Width
92 mm
Thread nominal size*
M130 x 2
Bore diameter
114.3
Taper
1:12
Holes for oil injection
Without
Thread designation
M130x2
