SKF

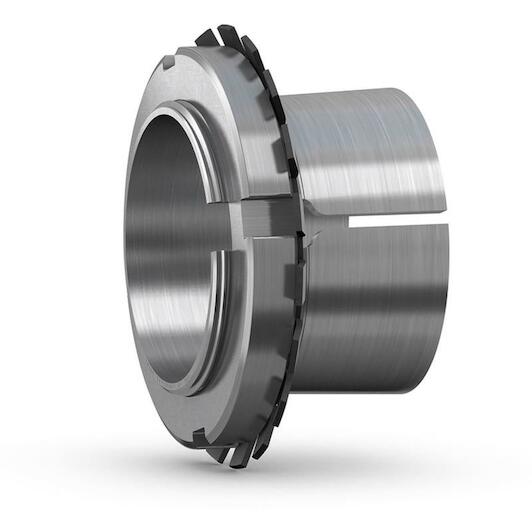

SKF HA 313 tension sleeve for metric shafts 555625 x 50 mm M65x2

Recommended Retail Price €136.84
67.60 tax incl.
€55.87 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

  • Easy to install
  • Complete with lock nut
  • Complete with locking device
Key features according to our expert
  • Inner diameter: 55,562 mm
  • Width: 50 mm
  • Thread nominal size*: M65 x 2
Specifications / All features
  • Brand: SKF
  • EAN: 7316577301123
  • Supplier number: SKF HA 313
Inner diameter
55,562 mm
Width
50 mm
Thread nominal size*
M65 x 2
Bore diameter
55.5625
Taper
1:12
Holes for oil injection
Without
Thread designation
M65x2
