What shaft diameter is this adapter sleeve suitable for?

The SKF H 315 adapter sleeve is designed for cylindrical shafts with a 65 mm diameter.

What are the main dimensions of the SKF H 315?

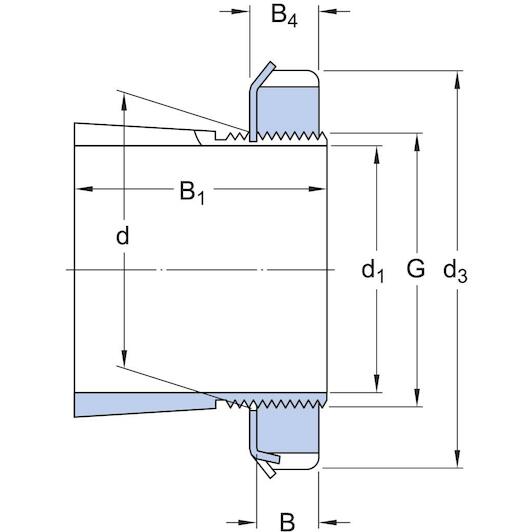

This adapter sleeve has a 65 mm bore diameter, a width of 55 mm, and an M75x2 thread.

Does this adapter sleeve include locking components?

Yes, it comes complete with a KM 15 lock nut and an MB 15 lock washer.

What is the taper of this adapter sleeve?

The sleeve features a standard 1:12 taper.

What is the function of the SKF H 315 adapter sleeve?

It is used to mount bearings with a tapered bore onto plain or stepped cylindrical shafts.

SKF H 315 Bushing for metric axles 65 x 55 mm M75x2

Supplier number: SKF H 315 | EAN 7316577008558

Recommended Retail Price €154.78

76.60 tax incl.

€63.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf

Practical benefits

Quick and simple installation: You mount tapered-bore bearings easily onto smooth or stepped cylindrical shafts with minimal effort.
Complete secure locking: With the included KM lock nut and MB lock washer, you lock bearings firmly in place.
Precise metric fit: The accurate M75X2 thread and 65 mm bore diameter ensure stable, vibration-free operation in your machinery.

In a nutshell

The right choise for

With the Skf h 315 adapter sleeve, you can mount tapered-bore bearings quickly and securely onto plain or stepped 65 mm cylindrical shafts without needing expensive shaft shoulders. Supplied complete with a km 15 lock nut and an mb 15 lock washer, it locks your bearing firmly in position against axial displacement under vibrating and dynamic operating conditions. The precise M75X2 thread, 55 mm width, and standard 1:12 taper ensure stable, balanced rotation in your machinery while simplifying disassembly and bearing replacement without damaging the shaft.

Product information FAQ

€76.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 55 mm
Thread size*: M75 x 2

Product description

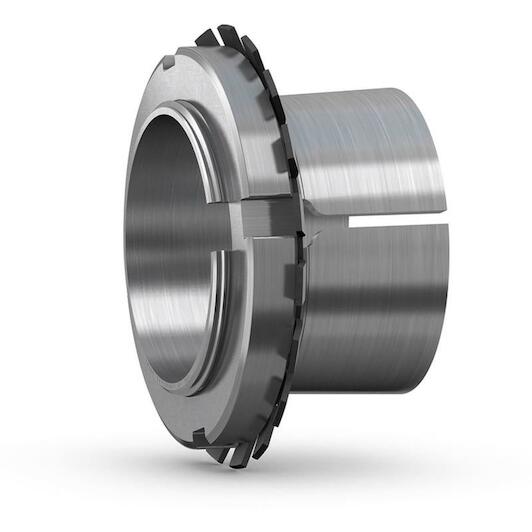

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 55 mm
Thread size*: M75 x 2
Bore diameter: 65
Taper: 1:12
Holes for oil injection: Without
Thread designation: M75x2

Brand SKF
01230531
EAN 7316577008558
Supplier number SKF H 315

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this adapter sleeve suitable for?: The SKF H 315 adapter sleeve is designed for cylindrical shafts with a 65 mm diameter.
What are the main dimensions of the SKF H 315?: This adapter sleeve has a 65 mm bore diameter, a width of 55 mm, and an M75x2 thread.
Does this adapter sleeve include locking components?: Yes, it comes complete with a KM 15 lock nut and an MB 15 lock washer.
What is the taper of this adapter sleeve?: The sleeve features a standard 1:12 taper.
What is the function of the SKF H 315 adapter sleeve?: It is used to mount bearings with a tapered bore onto plain or stepped cylindrical shafts.
