What is the SKF H 314 adapter sleeve used for?

It is used to locate bearings with a tapered bore onto cylindrical shafts.

Which shaft diameter is this adapter sleeve suited for?

The SKF H 314 is designed for metric shafts with a diameter of 60 mm.

What thread size does this adapter sleeve have?

The adapter sleeve is threaded with M70 x 2.

Are the lock nut and lock washer included?

Yes, it comes complete with a KM lock nut and an MB lock washer.

What are the width and outer diameter dimensions?

This sleeve has a width of 52 mm and an outer diameter of 92 mm.

SKF H 314 tension sleeve for metric shafts 60 x 52 mm M70x2

Supplier number: SKF H 314 | EAN 7316577008541

Recommended Retail Price €150.25

74.20 tax incl.

€61.32 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf

Practical benefits

Easy mounting on shafts: You mount tapered-bore bearings smoothly on plain or stepped 60 mm cylindrical shafts without hassle.
Complete secure locking system: The included KM lock nut and MB lock washer allow you to lock the assembly firmly on the M70X2 thread.
Stable and precise fit: The slotted sleeve design with a 52 mm width delivers uniform clamping and reliable axial positioning.

In a nutshell

The right choise for

With the Skf h 314 adapter sleeve, you mount bearings with a tapered bore securely and accurately onto smooth or stepped 60 mm cylindrical shafts. The slotted design with a 52 mm width ensures uniform clamping and reliable axial positioning. Thanks to the included km lock nut and mb lock washer, you lock the entire assembly directly onto the M70 x 2 thread. This prevents unwanted axial displacement during operation and allows you to complete installation and maintenance work on drive systems quickly and with confidence.

Product information FAQ

€74.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 52 mm
Thread size*: M70 x 2

Product description

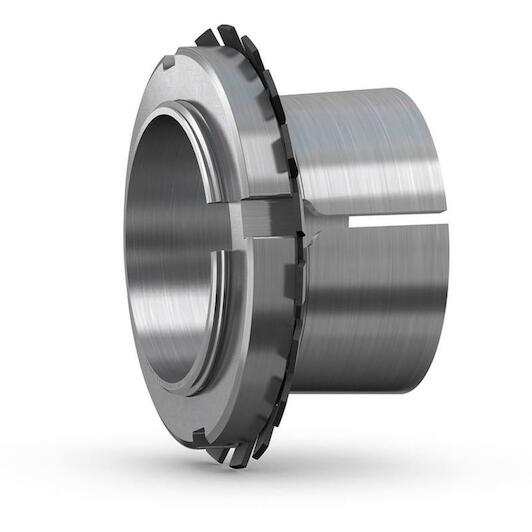

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

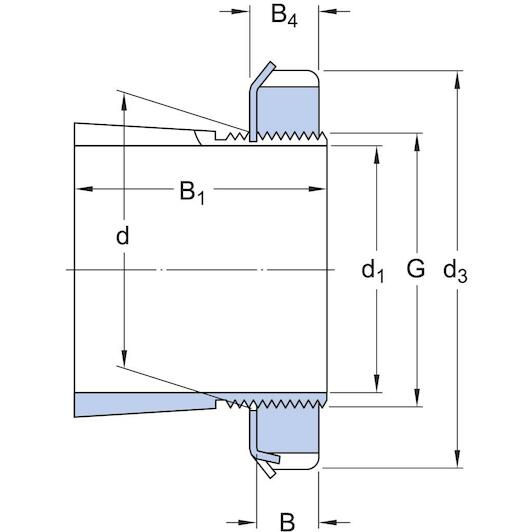

All Features

Inner diameter: 60 mm
Width: 52 mm
Thread size*: M70 x 2
Bore diameter: 60
Taper: 1:12
Holes for oil injection: Without
Thread designation: M70x2

Brand SKF
01230530
EAN 7316577008541
Supplier number SKF H 314

Frequently asked questions about this product

Answered by specialists

What is the SKF H 314 adapter sleeve used for?: It is used to locate bearings with a tapered bore onto cylindrical shafts.
Which shaft diameter is this adapter sleeve suited for?: The SKF H 314 is designed for metric shafts with a diameter of 60 mm.
What thread size does this adapter sleeve have?: The adapter sleeve is threaded with M70 x 2.
Are the lock nut and lock washer included?: Yes, it comes complete with a KM lock nut and an MB lock washer.
What are the width and outer diameter dimensions?: This sleeve has a width of 52 mm and an outer diameter of 92 mm.
