What shaft diameter is this adapter sleeve designed for?

The sleeve has a bore diameter of 125 mm and is suitable for 125 mm plain or stepped metric shafts.

Which lock nut and locking device are included?

This adapter sleeve comes complete with a KM 28 lock nut and an MB 28 lock washer.

What is the thread size of the SKF H 2328?

The sleeve features a metric thread designation of M140x2.

What is the taper of this adapter sleeve?

It has a standard external taper of 1:12 for mounting bearings with a tapered bore.

What is the total width of this sleeve?

The overall width of the adapter sleeve is 131 mm.

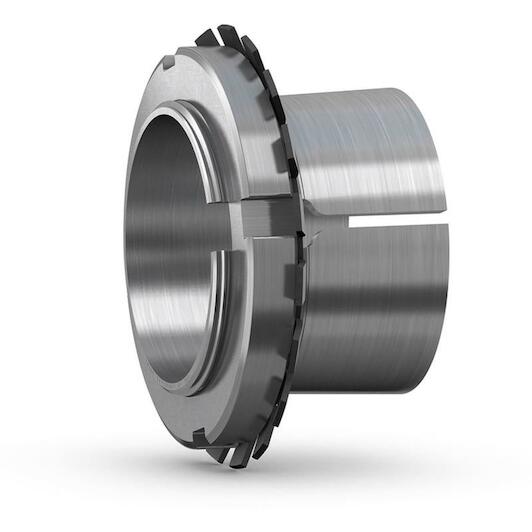

SKF H 2328 Bushing for metric axles 125 x 131 mm M140x2

Supplier number: SKF H 2328 | EAN 7316577008800

Recommended Retail Price €898.38

444.80 tax incl.

€367.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf H 2328

Practical benefits

Quick and simple installation: You easily mount tapered bore bearings onto smooth or stepped cylindrical shafts using the slotted design.
Complete and secure locking: The included lock nut and lock washer ensure you achieve a vibration-resistant and firm hold on the shaft.
Precise bearing clearance adjustment: The standardized M140X2 thread allows you to accurately set the axial position and internal bearing clearance.

In a nutshell

The right choise for

With the Skf h 2328 adapter sleeve, you easily and securely mount tapered bore bearings onto plain or stepped 125 mm cylindrical shafts. Its slotted construction enables smooth positioning along the shaft without requiring precision-machined shaft shoulders. The standardized M140X2 thread gives you exact control when setting the axial location and internal bearing clearance. Complete with the km 28 lock nut and mb 28 lock washer, this set provides a dependable, vibration-resistant lock that prevents slippage under heavy dynamic loads in gearboxes, blowers, and conveyor pulleys. You keep rotating equipment running smoothly with fast, accurate installation.

Product information FAQ

€444.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 125 mm
Width: 131 mm
Thread size*: M140 x 2

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

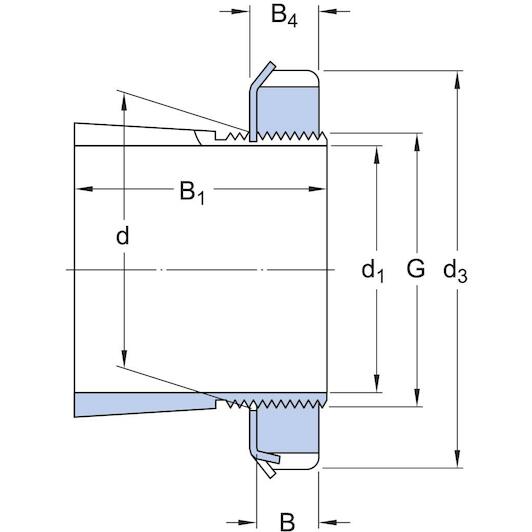

All Features

Inner diameter: 125 mm
Width: 131 mm
Thread size*: M140 x 2
Bore diameter: 125
Taper: 1:12
Holes for oil injection: Without
Thread designation: M140x2

Brand SKF
01230556
EAN 7316577008800
Supplier number SKF H 2328

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this adapter sleeve designed for?: The sleeve has a bore diameter of 125 mm and is suitable for 125 mm plain or stepped metric shafts.
Which lock nut and locking device are included?: This adapter sleeve comes complete with a KM 28 lock nut and an MB 28 lock washer.
What is the thread size of the SKF H 2328?: The sleeve features a metric thread designation of M140x2.
What is the taper of this adapter sleeve?: It has a standard external taper of 1:12 for mounting bearings with a tapered bore.
What is the total width of this sleeve?: The overall width of the adapter sleeve is 131 mm.
