SKF

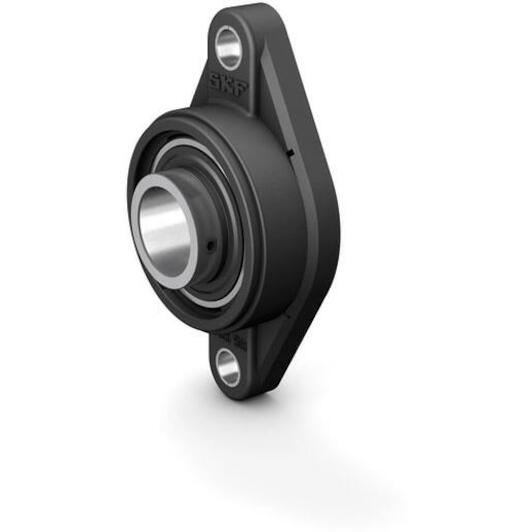

SKF FYTBK 35 TF Y ball bearing unit with flange oval, d 35 mm, A 35 mm, J 130 mm

Recommended Retail Price €129.39
63.95 tax incl.
€52.85 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

These oval flanged ball bearing units are compliant with ISO standards. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Chemical resistant
  • Pre-lubricated for life
  • Lightweight
  • Strong
Key features according to our expert
  • Shaft diameter: 35 mm
  • Split: No
  • Material (bearing housing): Composite
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Oval
Specifications / All features
  • Brand: SKF
  • EAN: 7316570267358
  • Supplier number: SKF FYTBK 35 TF
Shaft diameter
35 mm
Split
No
Material (bearing housing)
Composite
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Oval
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Note
Limiting speed with shaft tolerance h6
Flanged housing type
Oval
Housing type
Flanged
Application
For material handling applications
Basic static load rating
15.3
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Grease fitting
Without
Material, housing
Composite
Number of bolt holes for fasteners
2
Attachment bolt diameter
12
Bearing width, total
42.9
Basic dynamic load rating
25.5
Coating
Without
Housing overall width
35
Retaining feature, inner ring
Set screws
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
5300
Sealing, unit
Optional end cover
Centre distance between bolt holes
130
Set screw
M6x0.75
