SKF

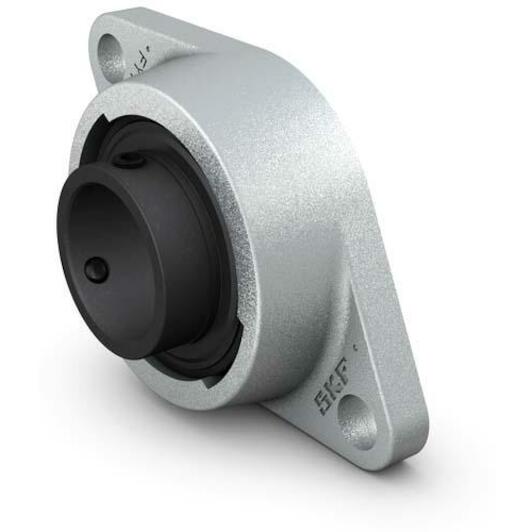

SKF FYTB 25 TF/VA201 ball bearing unit with oval flange and locking with set screw, high temperature, cast iron bearing housing, ISO

Recommended Retail Price €285.27
141.20 tax incl.
€116.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 11/07/2026
each

  • Delivery by DHL

Product description

These oval flanged ball bearing units are designed for high temperature applications and are compliant with ISO standards. They consist of a high temperature insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Resist high levels of contamination
  • Designed for high temperatures applications
  • Accommodate relatively heavy loads
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 25 mm
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
  • High temperature: Yes
  • Bore type: Cylindrical
  • Shape (bearing housing): Oval
Specifications / All features
  • Brand: SKF
  • EAN: 7316579223089
  • Supplier number: SKF FYTB 25 TF/VA201
Shaft diameter
25 mm
Material (bearing housing)
Cast iron
Material (bearing)
Steel
High temperature
Yes
Bore type
Cylindrical
Shape (bearing housing)
Oval
Material, bearing
High temperature steel
Number of bolt holes for fasteners
2
Lubricant
Solid lubricant
Rubber seating ring
Without
Sealing type
Non-contact
Sealing, bearing
Shield and flinger on both sides
Housing type
Flanged
Flanged housing type
Oval
Bearing width, total
34.1
Application
For high temperature applications
Hexagonal key size for set screw
3
Maximum operating temperature
250
Grease fitting
Without
Material, housing
Cast iron
Basic static load rating
7.8
Attachment bolt diameter
10
Retaining feature, inner ring
Set screws
Basic dynamic load rating
14
Coating
Zinc-coated housing and manganese phosphate coated bearing
Housing overall width
30
Centre distance between bolt holes
99
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
110
Width, total
38.8
Sealing, unit
Without
Set screw
M6x0.75
